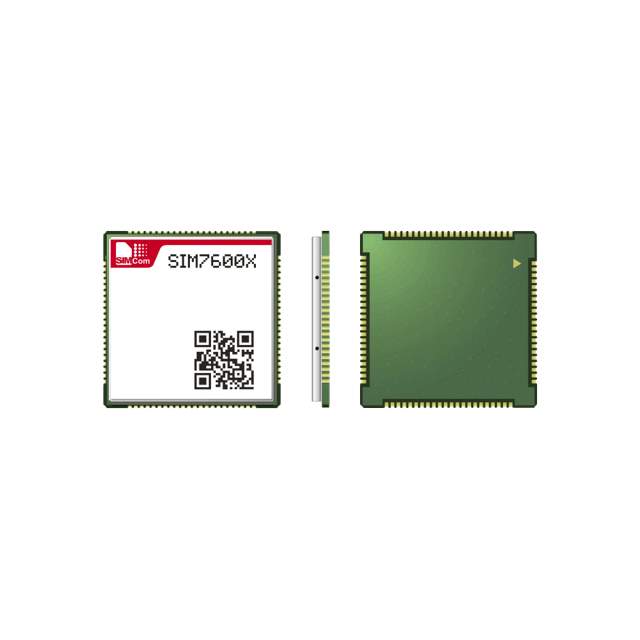

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr SIMCom Wireless Solutions Limited
Series SIM7600E
Package Tray
RF Family/Standard Cellular
Protocol GSM, LTE, WCDMA
Modulation QPSK
Frequency 900MHz, 1.8GHz
Data Rate 150Mbps
Sensitivity -110dBm
Serial Interfaces I²C, PCM, SDIO, SPI, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3.4V ~ 4.2V
Current - Receiving 17.5mA
Current - Transmitting 17.5mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 87-SMD Module
MSL Level 3 (168 Hours)
Other Names S2-10A98-Z30G6,S2-10A98,3781-SIM7600E
Standard Package 300
Win Source Part Number 1219009-SIM7600E
Ultra Librarian 3D Model Ultra Librarian SIM7600E CAD Model

Description

This electronic component is an RF transceiver module with a Win Source Part Number of 1219009-SIM7600E. It falls under the RF/IF and RFID > RF Transceiver Modules and Modems category and is part of the SIM7600E series. The product's package is a tray, and its standard package is 300. It has a surface mount mounting type and a frequency of 900MHz, 1.8GHz. The product's protocol is GSM, LTE, WCDMA, and its data rate is 150Mbps. The product has no memory size, and its antenna type is not included. It has no power output, a sensitivity of -110dBm, and a current-receiving of 17.5mA. The product's utilized IC/part is not specified. Its RF family/standard is cellular, and its modulation is QPSK. The product has serial interfaces such as I²C, PCM, SDIO, SPI, UART, and USB. Its current-transmitting is 17.5mA, and its voltage supply is 3.4V ~ 4.2V. The product's package/case is 87-SMD Module, and its temperature range when operating is -40°C ~ 85°C. The product is supplied by SIMCom Wireless Solutions Limited.
