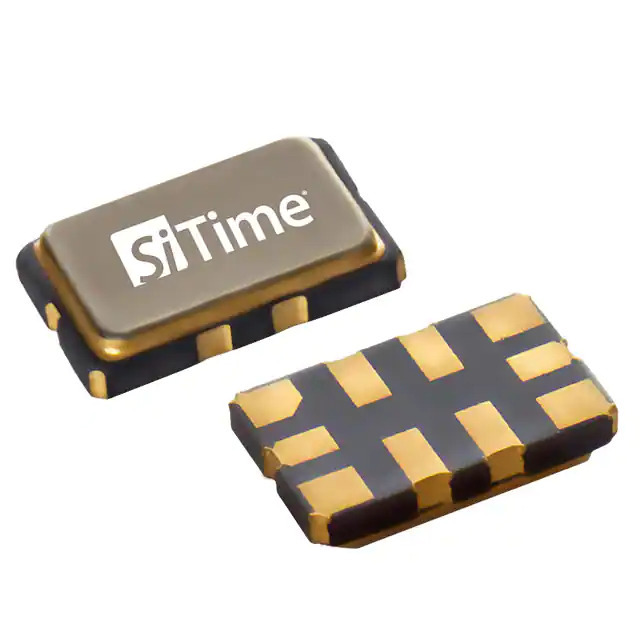

Same model may have multiple batches, images only for reference.
SIT5156AICFK-33N0-26.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT5156AICFK-33N0-26.000000

Part No SIT5156AICFK-33N0-26.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC TCXO 26.0000MHZ / 26 MHz TCXO Clipped Sine Wave Oscillator 3.3V 10-SMD, No Lead
Datasheet
SIT5156AICFK-33N0-26.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT5156, Elite Platform™
Package Strip
Product Status Active
Base Resonator MEMS
Type TCXO
Frequency 26 MHz
Function -
Output Clipped Sine Wave
Voltage - Supply 3.3V
Frequency Stability ±500ppb
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 53mA
Ratings -
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.042" (1.06mm)
Current - Supply (Disable) (Max) -
Base Product Number SIT5156
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354946-SIT5156AICFK-33N0-26.000000
Ultra Librarian 3D Model Ultra Librarian SIT5156AICFK-33N0-26.000000 CAD Model

Description

The SiTime SiT5156AICFK-33N0-26.000000 is a TCXO oscillator with a frequency of 26 MHz.

  • Frequency: 26 MHz
  • Series: SiT5156
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Voltage Supply: 3.3V
  • Supply Current (Max): 53mA
  • Frequency Stability: ±500ppb
  • Base Resonator: MEMS
  • Output: Clipped Sine Wave
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height: 0.042" (1.06mm)
