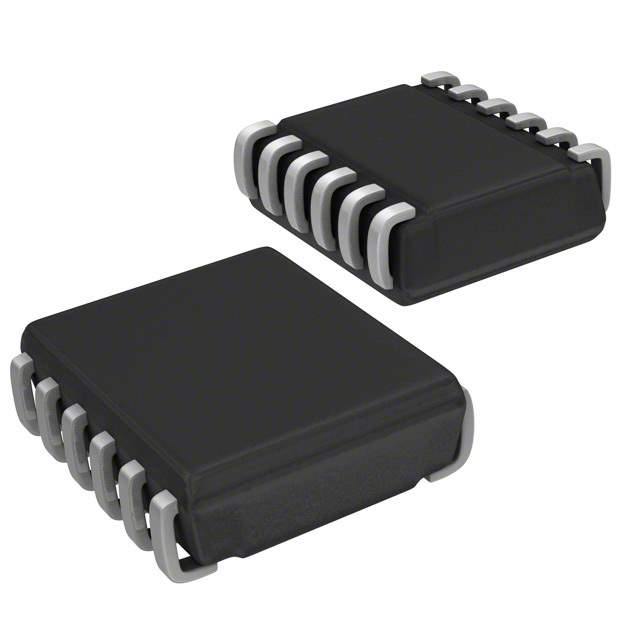

AAT4684ITP-T1

Part No AAT4684ITP-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description 28V OVER VOLT PROTECTION SWITCH
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Switch Type General Purpose
Number of Outputs 1
Output Type P-Channel
Voltage - Load 3 V to 14 V
Supply Voltage - Operating Not Required
Current - Output (Max) 1.8A
Rds On (Typ) 100 mOhm
Input Type Non-Inverting
Features Status Flag
Fault Protection Over Temperature, UVLO
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package 12-TSOPJW
Win Source Part Number 007778-AAT4684ITP-T1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AAT4684ITP-T1 CAD Model

Description

Product Description

The AAT4684ITP-T1 is designed for seamless integration into power distribution systems, providing rigorous control and efficiency. It is optimized for minimal power losses and superior protection features.

Features and Benefits

  • Automatic shutdown on fault detection
  • Highly efficient power management
  • Low resistance for maximum current flow
  • Small footprint for applications with limited space

Applications

  • Computing systems
  • Power backup units
  • Energy-efficient appliances
  • Medical equipment

Additional Details

The AAT4684ITP-T1 offers a reliable solution for intricate systems needing precise power management and protection.
