Same model may have multiple batches, images only for reference.

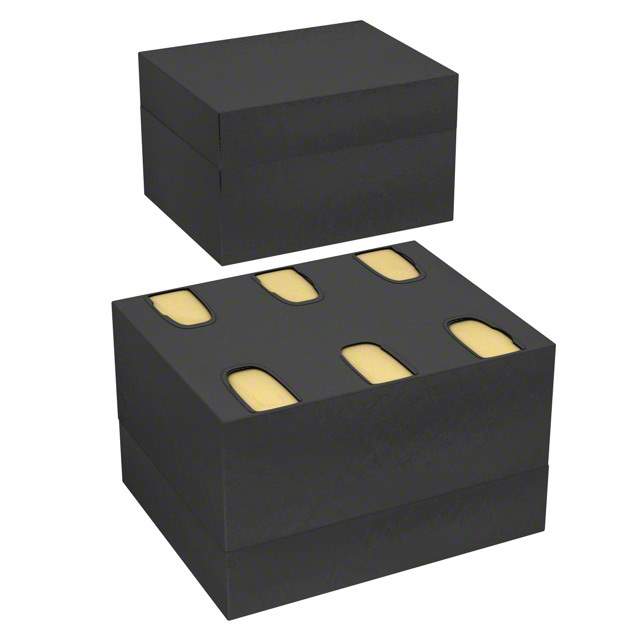

SKY13276-334 Real Image
Same model may have multiple batches, images only for reference.

SKY13276-334

Part No SKY13276-334
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC SWITCH SPDT 6GHZ 6LGA
Datasheet
SKY13276-334 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel
Part Status Obsolete
Frequency - Lower 100MHz
Frequency - Upper 6GHz
Isolation @ Frequency 21dB @ 5.85GHz (typ)
Insertion Loss @ Frequency 0.7dB @ 5.85GHz
IIP3 55dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 34dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type 802.11a/b/g/n
Case 6-VFLGA
Supplier Device Package 6-LGA (1.5x1.2)
Win Source Part Number SKY13276-334-324749
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SKY13276-334 CAD Model

Description

The SKY13276-334-324749 is a SPDT reflective circuit electronic component manufactured by Skyworks Solutions Inc. The component has a frequency range of 100MHz to 6GHz and an impedance of 50 Ohm.

  • Circuit Type: SPDT Reflective
  • Frequency Range: 100MHz to 6GHz
  • Impedance: 50 Ohm
  • Insertion Loss @ Frequency: 0.7dB @ 5.85GHz
  • Isolation @ Frequency: 21dB @ 5.85GHz (typ)
  • IIP3: 55dBm (typ)
  • P1dB: 34dBm (typ) IP1dB
  • Applications: RF/IF and RFID
  • Supplier Device Package: 6-LGA (1.5x1.2)
  • Status: Obsolete
