Same model may have multiple batches, images only for reference.

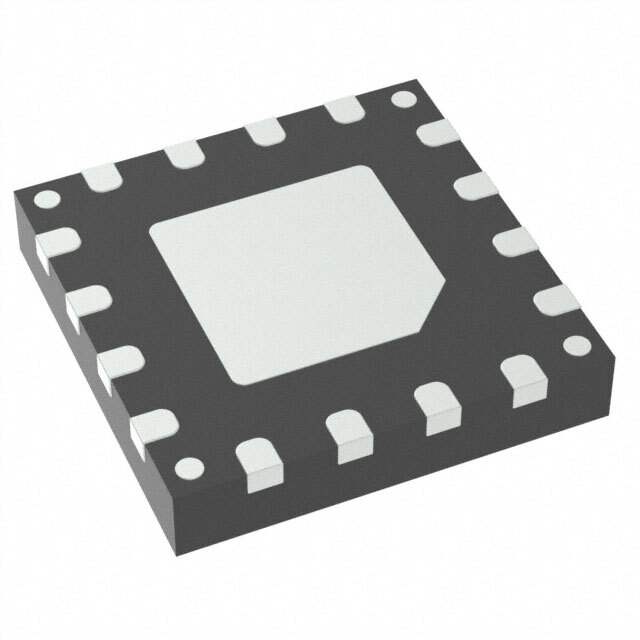

SKY65534-11 Real Image
Same model may have multiple batches, images only for reference.

SKY65534-11

Part No SKY65534-11
Manufacturer Skyworks Solutions Inc.
Catalog RF Front End (LNA + PA)
Description MOD FEM 2.4G PA+LNA+SP3T 16QFN / RF Front End 2.4GHz 802.11b/g/n, Bluetooth, WLAN 16-QFN (2.5x2.5)
Datasheet
SKY65534-11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Front End (LNA + PA)
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
RF Type 802.11b/g/n, Bluetooth, WLAN
Frequency 2.4GHz
Features SP3T
Package / Case 16-XFQFN Exposed Pad
Supplier Device Package 16-QFN (2.5x2.5)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 324853-SKY65534-11
Ultra Librarian 3D Model Ultra Librarian SKY65534-11 CAD Model

Description

The SKY65534-11 is an RF front end with SP3T features.

  • Feature: SP3T
  • Frequency: 2.4GHz
  • Compatibility: 802.11b/g/n, Bluetooth, and WLAN RF types
  • Package: 16-XFQFN exposed pad
  • Mounting: Surface mountable
  • Status: Obsolete
