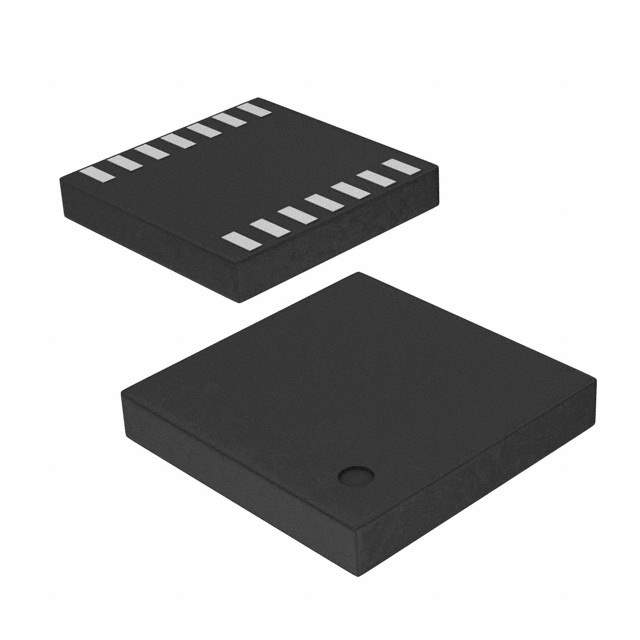

SI8274AB4D-IMR Real Image
Same model may have multiple batches, images only for reference.

SI8274AB4D-IMR

Part No SI8274AB4D-IMR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRVR 14LGA / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-LGA (5x5)
Datasheet
SI8274AB4D-IMR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tape & Reel (TR)
Product Status Not For New Designs
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 105ns, 75ns
Pulse Width Distortion (Max) 47ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.6V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8274
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243781-SI8274AB4D-IMR
Ultra Librarian 3D Model Ultra Librarian SI8274AB4D-IMR CAD Model

Description

The SI8274AB4D-IMR is a capacitive coupling isolator gate driver from Skyworks Solutions Inc. It is used in isolators - gate drivers.

  • Package: Tape & Reel (TR)
  • Mounting: SMD (SMT)
  • Standard Package: 2,500 units
  • Temperature Range: -40°C to 125°C
  • Current Output High: 1.8A
  • Current Output Low: 4A
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity (min): 200kV/µs
  • Propagation Delay tpLH / tpHL (max): 105ns and 75ns
  • Pulse Width Distortion (max): 47ns
  • MSL Level: 3 (168 hours)
  • HTSUS: 8542.39.0001
  • Not for new designs
  • Approvals: CQC, CSA, UR, VDE
