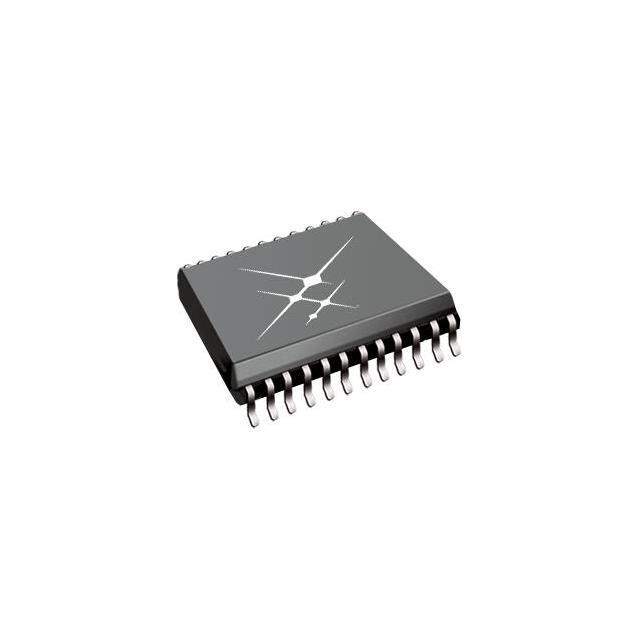

Same model may have multiple batches, images only for reference.

SI88644ED-IS

Name: SI88644ED-IS
Brand: Skyworks Solutions Inc.
SKU: 1243976
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SI88644ED-IS
Manufacturer	Skyworks Solutions Inc.
Catalog	Digital Isolators
Description	DGTL ISO 5000VRMS 4CH GP 24SOIC / General Purpose Digital Isolator 5000Vrms 4 Channel 100Mbps 40kV/µs CMTI 24-SOIC (0.295", 7.50mm Width)
Datasheet	SI88644ED-IS Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Digital Isolators
Mfr	Skyworks Solutions Inc.
Package	Tube
Product Status	Not For New Designs
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	0/4
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	40kV/µs
Data Rate	100Mbps
Propagation Delay tpLH / tpHL (Max)	12.6ns, 17.5ns (Typ)
Pulse Width Distortion (Max)	4.8ns (Typ)
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	3V ~ 5.5V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package	24-SOIC
Base Product Number	SI88644
Other Names	336-3945
Standard Package	46
MSL Level	6 (Time on Label)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1243976-SI88644ED-IS
Ultra Librarian 3D Model	Ultra Librarian SI88644ED-IS CAD Model

Alternative Products

Description

The 1243976-SI88644ED-IS digital isolator is a capacitive coupling technology device from Skyworks Solutions Inc.

Type: General-Purpose
Package: Tube
Data Rate: 100Mbps
Number of Channels: 4
Voltage Isolation: 5000Vrms
Common Mode Transient Immunity: 40kV/μs
Mounting: SMD (SMT)
Package: 24-SOIC (0.295”, 7.50mm Width)
Voltage Supply: 3V to 5.5V
Temperature Range: -40°C to 125°C
