Same model may have multiple batches, images only for reference.

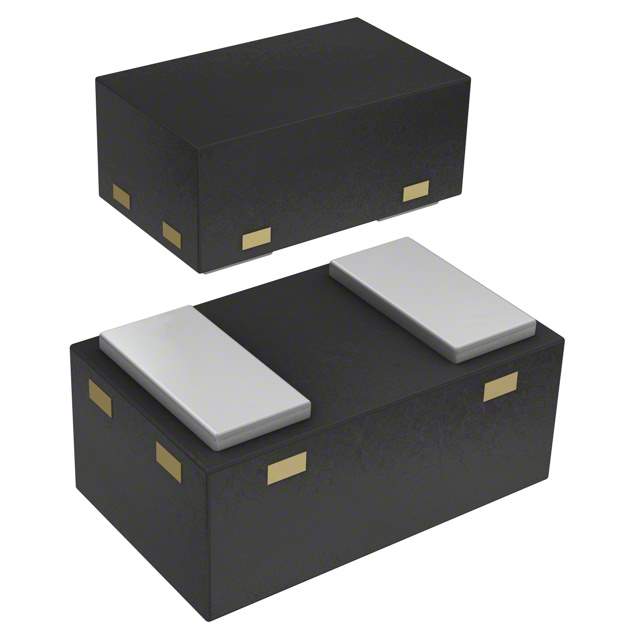

SMS7630-040LF Real Image
Same model may have multiple batches, images only for reference.

SMS7630-040LF

Part No SMS7630-040LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description DIODE SCHOTTKY 1V 150MA 0402
Datasheet
SMS7630-040LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 1V
Current - Max 150mA
Capacitance @ Vr, F 0.3pF @ 150mV, 1MHz
Power Dissipation (Max) 250mW
Temperature Range - Operating 150°C (TJ)
Case / Package 0402
Win Source Part Number 029465-SMS7630-040LF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SMS7630-040LF CAD Model

Description

The electronic component with the Id 336895 is a product manufactured by Skyworks Solutions Inc.

  • Manufacturer: Skyworks Solutions Inc.
  • Win Source Part Number: 029465-SMS7630-040LF
  • Category: Discrete Semiconductor Products
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Packaging: Reel - TR
  • Maximum Power Dissipation: 250mW
