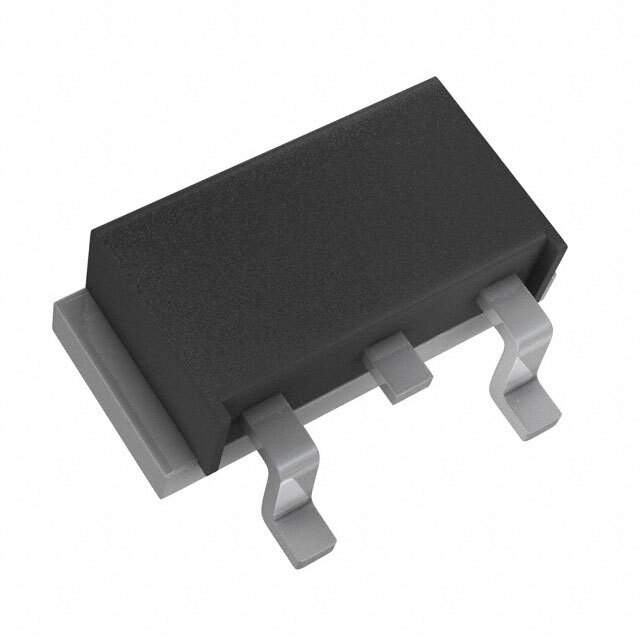

85CNQ015SL

Part No 85CNQ015SL
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 15V 40A PRM2-SL  /  Diode Array 1 Pair Common Cathode Schottky 15 V 40A Surface Mount PRM2-SL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr SMC Diode Solutions
Package Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 15 V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 450 mV @ 40 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20 mA @ 15 V
Operating Temperature - Junction -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case PRM2-SL
Supplier Device Package PRM2-SL
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 85CNQ015SLSMC,1655-2139,85CNQ015SLSMC-ND
Standard Package 100
Win Source Part Number 1006971-85CNQ015SL
Ultra Librarian 3D Model Ultra Librarian 85CNQ015SL CAD Model

Description

The SMC Diode Solutions diode with part number 1006971-85CNQ015SL is a Schottky diode with a voltage rating of 15V.

  • Forward Voltage: 450mV @ 40A
  • Reverse Leakage @ Vr: 20mA @ 15V
  • Diode Configuration: 1 Pair Common Cathode
  • Package/Case: PRM2-SL
  • Supplier Device Package: PRM2-SL
  • Operating Temperature: -55°C to 125°C
  • Current Average Rectified (Io): 40A
  • REACH Status: Affected
