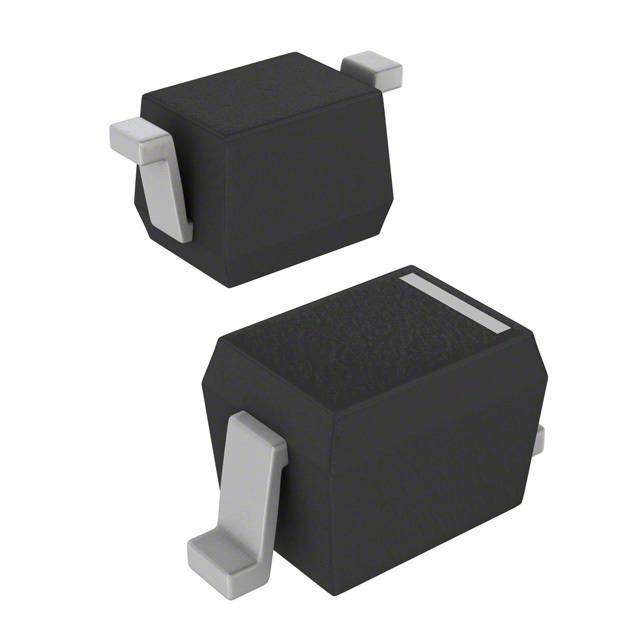

BAT54WST/R SMC Diode Solutions
Same model may have multiple batches, images only for reference.

BAT54WST/R

Part No BAT54WST/R
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SOD323
Datasheet
BAT54WST/R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Current - Reverse Leakage @ Vr 2μA @ 25V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-323
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 200343-BAT54WST/R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAT54WST/R CAD Model

Description

Product Overview

The BAT54WST/R diode is a Schottky diode designed for applications demanding minimal forward voltage drop and high-speed switching. It supports efficient power management with its small SOD-323 footprint.

Features and Benefits

  • High transition speed
  • Low forward voltage drop
  • Thermal stability
  • Compact and efficient SOD-323 package

Applications

  • Signal processing
  • Power conversion systems
  • Protection circuits
  • Pulse shaping

This diode is optimized for both digital and analog systems, making it a versatile choice for reducing power across various applications.
