Same model may have multiple batches, images only for reference.

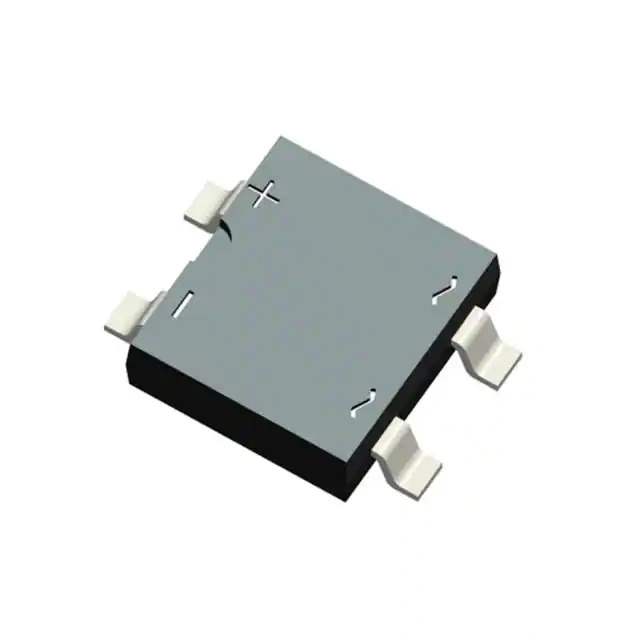

MB1F Real Image
Same model may have multiple batches, images only for reference.

MB1F

Part No MB1F
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 100V 500MA MBF
Datasheet
MB1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100 V
Current - Average Rectified (Io) 500 mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 800 mA
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package MBF
Base Product Number MB1
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 632913-MB1F
Ultra Librarian 3D Model Ultra Librarian MB1F CAD Model

Description

The 632913-MB1F is a single-phase bridge rectifier designed for discrete semiconductor applications.

  • Average Rectified Current: 500 mA
  • Maximum Peak Reverse Voltage: 100V
  • Forward Voltage Drop @ 800 mA: 1.1V
  • Reverse Leakage Current @ Maximum Reverse Voltage: 5 µA
  • Mounting: surface mountable
  • Package: 4-SMD gull wing
  • Operating Temperature Range: -55°C to 150°C
  • Standard Package: 5,000 pieces
