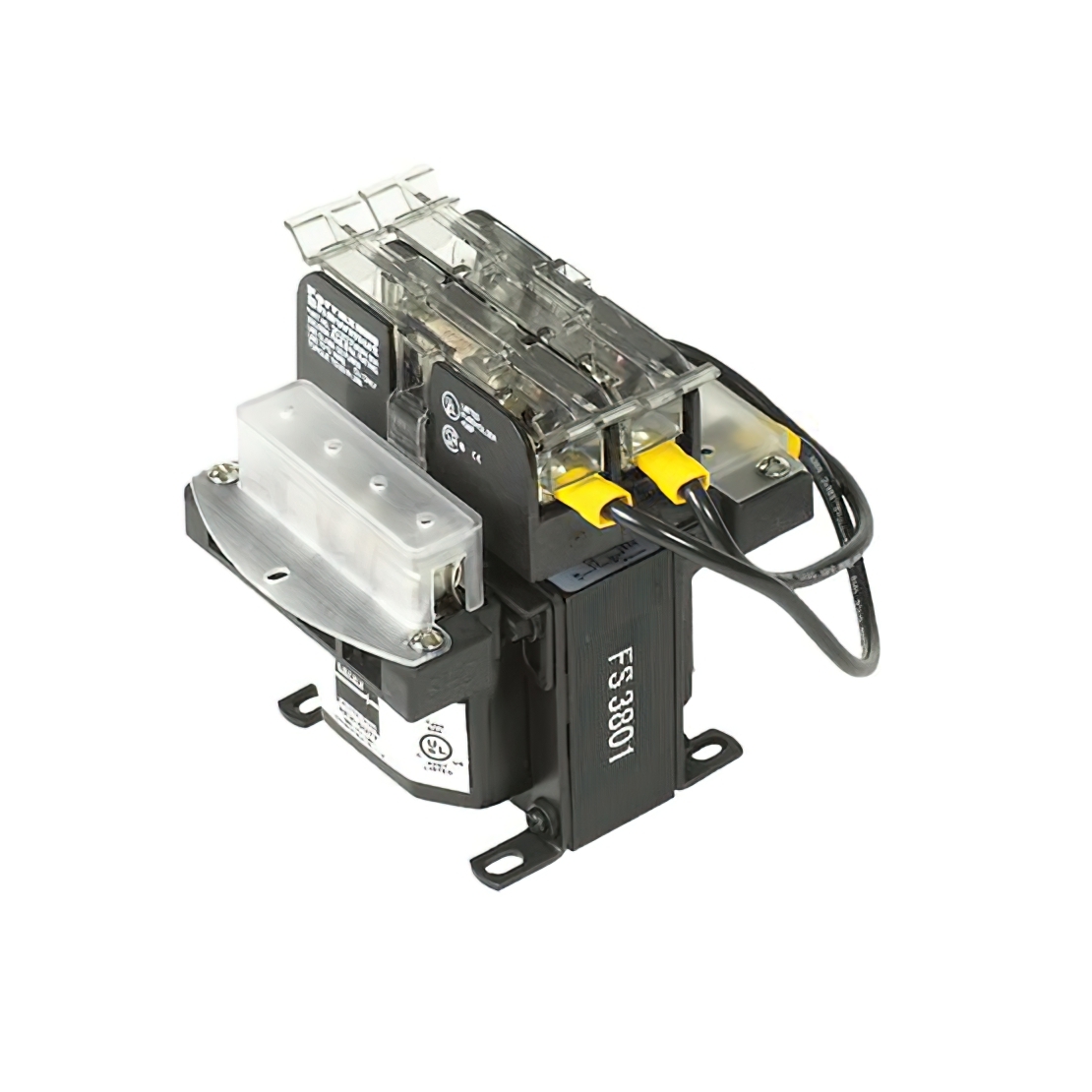

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Laminated Core
Voltage - Primary 120V, 240V
Voltage - Secondary (Full Load) 24V
Primary Winding(s) Dual
Secondary Winding(s) Single
Center Tap No
Power - Max 75VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Size / Dimension 110.70mm L x 86.10mm W
Height - Seated (Max) 75.20mm
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1545144-E075E
Ultra Librarian 3D Model Ultra Librarian E075E CAD Model
