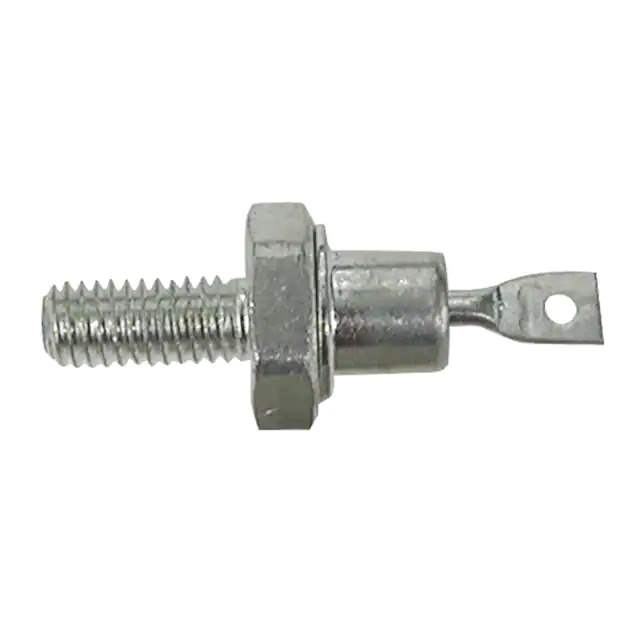

1N5830 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Solid State Inc.
Package Bulk
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 460 mV @ 25 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 3 mA @ 30 V
Capacitance @ Vr, F 1650pF @ 5V, 1MHz
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 125°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 539348-1N5830
Ultra Librarian 3D Model Ultra Librarian 1N5830 CAD Model

Description

The 539348-1N5830 is a fast recovery Schottky diode designed for rectification applications.

  • Maximum Voltage Rating: 30V
  • Average Rectified Current: 25A
  • Forward Voltage Drop: 460mV @ 25A
  • Reverse Leakage Current: 3mA @ 30V
  • Capacitance: 1650pF @ 5V and 1MHz
  • Operating Temperature: -65°C to 125°C
  • Mounting: stud mount package
  • Manufacturer: Solid State Inc.
  • Standard Package: 10 pcs
