Products specifications

Category Discrete Semiconductor Products>Thyristors>SCRs
Mfr Solid State Inc.
Series 22RIA
Package Bulk
Voltage - Off State 600 V
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 60 mA
Voltage - On State (Vtm) (Max) 1.7 V
Current - On State (It (AV)) (Max) 22 A
Current - On State (It (RMS)) (Max) 35 A
Current - Hold (Ih) (Max) 100 mA
Current - Off State (Max) 10 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 460A, 480A
SCR Type Standard Recovery
Temperature Range - Operating -65°C ~ 125°C (TJ)
Mounting Type Stud Mount
Package / Case TO-208AA, TO-48-3, Stud
Supplier Device Package TO-48
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 10 pcs
Win Source Part Number 1380679-22RIA60
Ultra Librarian 3D Model Ultra Librarian 22RIA60 CAD Model

Description

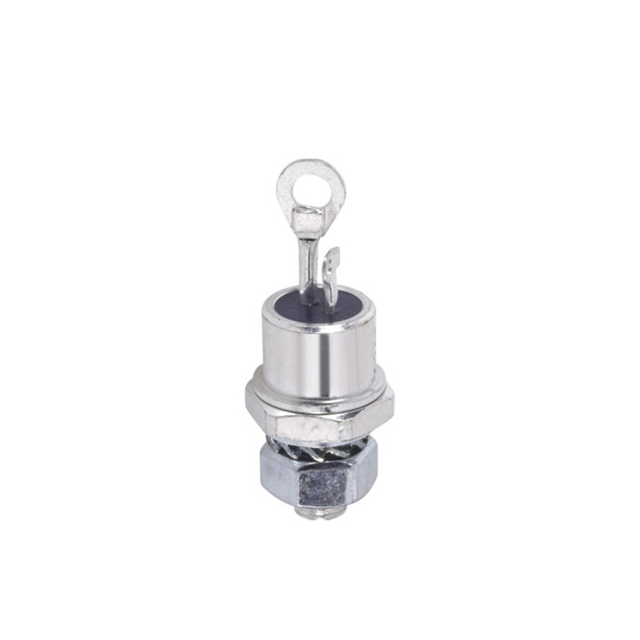

The 22RIA60 is a thyristor from Solid State Inc. It is a standard recovery SCR with a voltage off state of 600V and a voltage gate trigger of 2V (max).

  • Voltage - Off State: 600V
  • Voltage - Gate Trigger (Vgt): 2V (Max)
  • Current - Hold (Ih) (Max): 100 mA (Max)
  • Current - Gate Trigger (Igt) (Max): 60 mA (Max)
  • Voltage - On State (Vtm) (Max): 1.7V (Max)
  • Current - On State (It (AV)): 22A (AV)
  • Current - On State (It (RMS)): 35A (RMS)
  • Current - Off State (Max): 10 mA
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 460A @ 50Hz, 480A @ 60Hz
  • Package Quantity: 10 pcs
  • Mounting Type: Stud Mount
  • Package / Case: TO-208AA, TO-48-3, Stud
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • Thyristor Type: Standard Recovery SCR
