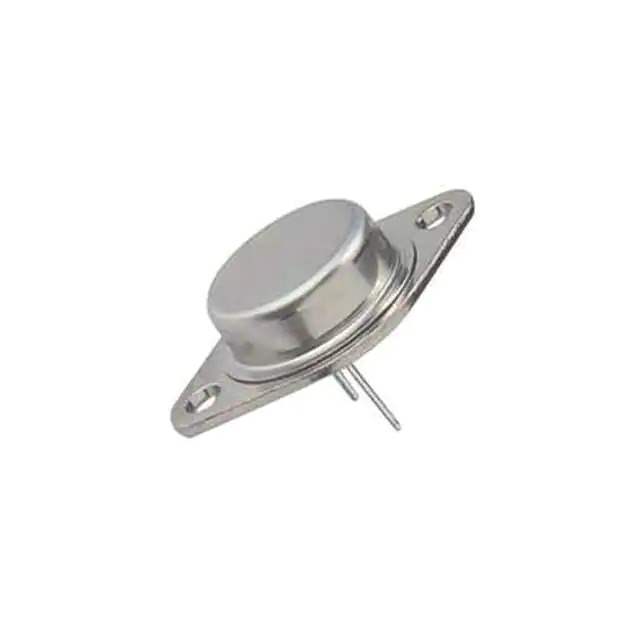

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Solid State Inc.
Package Bulk
Product Status Active
Transistor Type PNP
Current - Collector (Ic) (Max) 16 A
Voltage - Collector Emitter Breakdown (Max) 200 V
Vce Saturation (Max) @ Ib, Ic 4V @ 3.2A, 16A
Current - Collector Cutoff (Max) 500µA
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 8A, 4V
Power - Max 250 W
Frequency - Transition 4MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-204AA, TO-3
Supplier Device Package TO-3
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 640900-MJ15023
Ultra Librarian 3D Model Ultra Librarian MJ15023 CAD Model

Description

The MJ15023 is a PNP bipolar transistor designed for general-purpose switching applications.

  • Maximum Power Rating: 250W
  • Maximum Collector Current: 16A
  • Voltage Breakdown (Collector-Emitter): 200V
  • Package: TO-204AA/TO-3
  • Mounting: Through-Hole
  • Vce Saturation: 4V @ 16A
  • DC Current Gain (hFE): 15 @ 8A and 4V Collector-Emitter Voltage
  • Common Uses: Power supplies, audio amplifiers, and motor control circuits
  • Product Status: Active
  • Packaging: Bulk
  • Standard Package: 10 pcs
