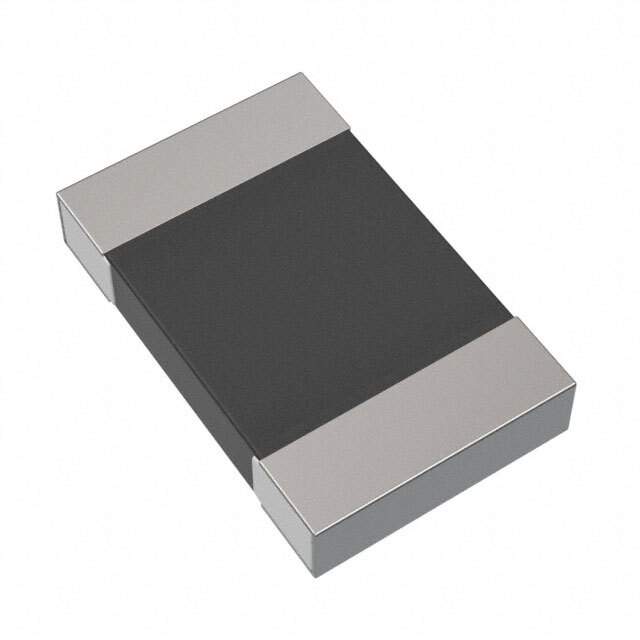

CSSH0805FT2L00 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSSH
Package Tape & Reel
Resistance 2 MOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Dimension 0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max) 0.026" (0.67mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 738-CSSH0805FT2L00TR,738-CSSH0805FT2L00CT,738-CSSH0805FT2L00DKR
Standard Package 5,000
Win Source Part Number 1207801-CSSH0805FT2L00
Ultra Librarian 3D Model Ultra Librarian CSSH0805FT2L00 CAD Model

Description

The Stackpole Electronics Inc CSSH0805FT2L00 is a resistor that is designed to be used in automotive applications.

  • Application: Automotive
  • Type: Chip Resistor
  • Mounting: Surface Mountable
  • Power Rating: 1W
  • Win Source Part Number: 1207801-CSSH0805FT2L00
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 2 MOhms
  • Package/Case: 0805 (2012 Metric)
