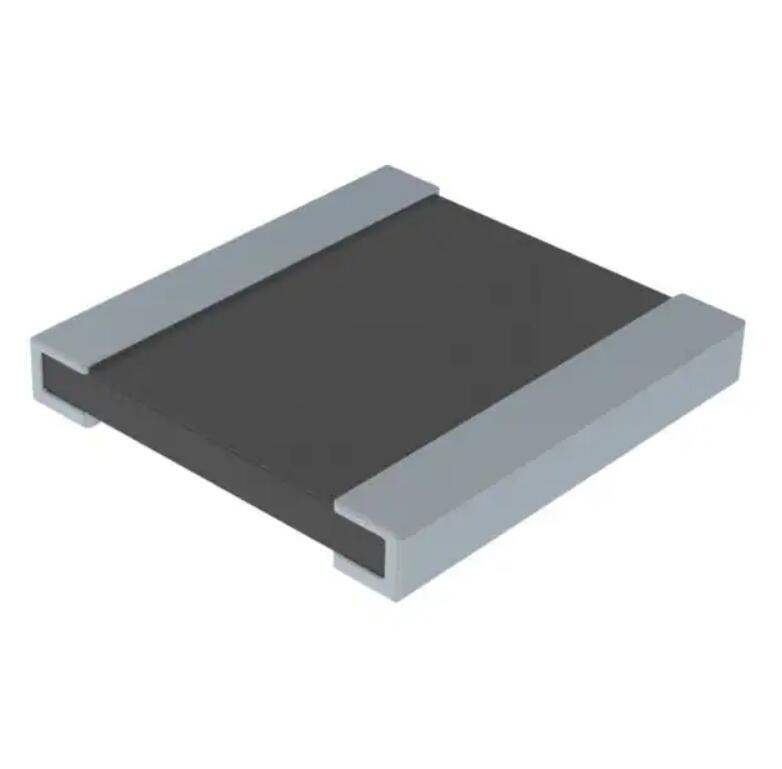

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number 2001524-CSSH2728FT5L00
Win Source Part Number Cross
Manufacturer Stackpole Electronics Inc
Category Resistors Chip Resistor - Surface Mount
Series CSSH
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Resistance 5 mOhms
Tolerance ±1%
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Ultra Librarian 3D Model Ultra Librarian CSSH2728FT5L00 CAD Model

Description

The Stackpole Electronics Inc CSSH resistor is a chip resistor designed for surface mount applications.

  • Mounting Type: Surface Mount
  • Application: Current Sensing
  • AEC-Q200: Yes
  • Power (Watts): 4W
  • Resistance: 5 mOhms
  • Composition: Metal Element
  • Packaging: Tape & Reel (TR)
  • Status: Active
  • Manufacturer: Stackpole Electronics Inc
