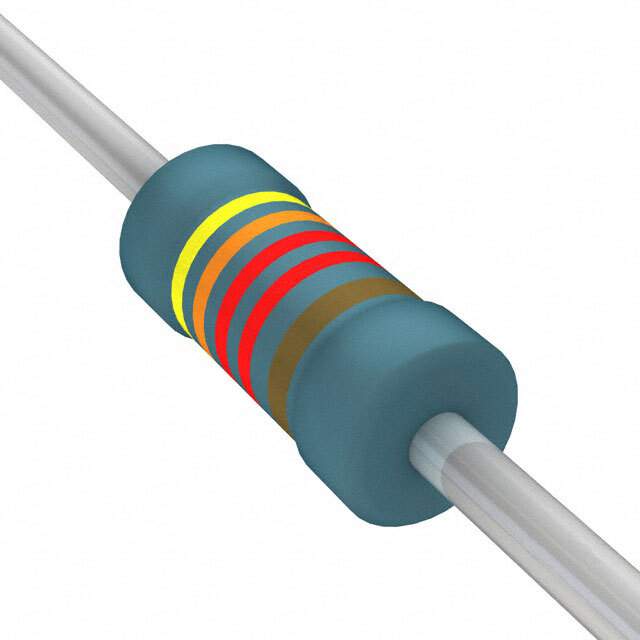

RNF18FAD43K2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Stackpole Electronics Inc
Series RNF
Package Tape & Box (TB)
Resistance 43.2 kOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Metal Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.071" Dia x 0.130" L (1.80mm x 3.30mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Standard Package 5,000
Win Source Part Number 1223407-RNF18FAD43K2
Ultra Librarian 3D Model Ultra Librarian RNF18FAD43K2 CAD Model

Description

The Stackpole Electronics Inc RNF18FAD43K2 is a metal film resistor with a resistance of 43.2 kOhms and a power rating of 0.125W or 1/8W.

  • Resistance: 43.2 kOhms
  • Power Rating: 0.125W or 1/8W
  • Coating: Flame Retardant
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Package: Axial
  • Terminations: 2
  • Application: Through Hole Resistor
