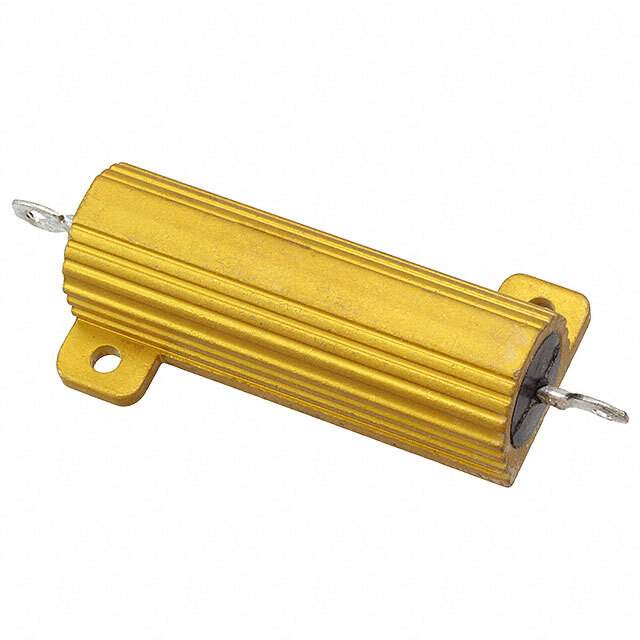

KAL50FB6R00 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Stackpole Electronics Inc
Series KAL
Package Bulk
Resistance 6 Ohms
Tolerance ±1%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.968" L x 1.140" W (49.99mm x 28.96mm)
Height - Seated (Max) 0.641" (16.28mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1338546-KAL50FB6R00
Ultra Librarian 3D Model Ultra Librarian KAL50FB6R00 CAD Model

Description

The Stackpole Electronics Inc KAL50FB6R00 chassis mount resistor is a high-quality component designed for high-temperature applications.

  • Resistance: 6 Ohms
  • Power: 50W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Height Seated: 0.641" (16.28mm)
  • Mounting: Flanges
  • Coating: Aluminum
  • Package: Box Axial
  • Operating Temperature: -55°C to 275°C
