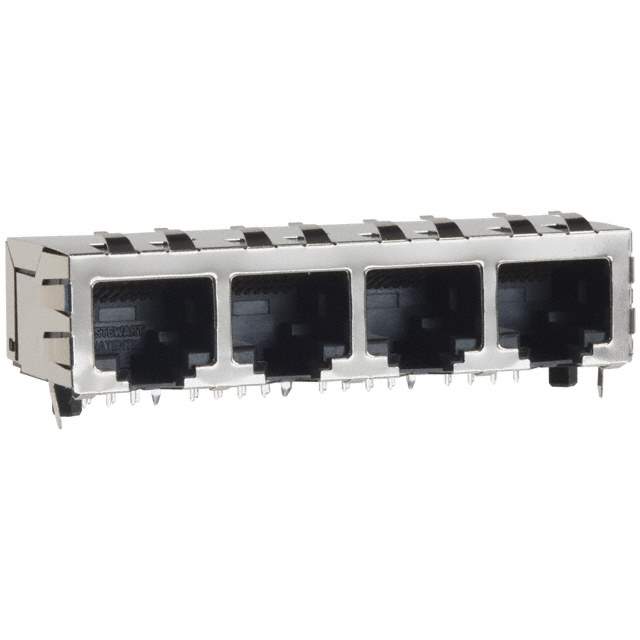

Same model may have multiple batches, images only for reference.

SS-668804S-A-PG4-AC

Name: SS-668804S-A-PG4-AC
Brand: Stewart Connector
SKU: 1340451
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SS-668804S-A-PG4-AC
Manufacturer	Stewart Connector
Catalog	Modular Connectors
Description	CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
Datasheet	SS-668804S-A-PG4-AC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr	Stewart Connector
Series	66
Package	Bulk
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	4
Number of Rows	1
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Shielding	Shielded, EMI Finger
Features	Board Guide
LED Color	Does Not Contain LED
Tab Direction	Down
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Housing Material	Thermoplastic
Temperature Range - Operating	-40°C ~ 85°C
Base Product Number	SS-6688
Standard Package	32
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340451-SS-668804S-A-PG4-AC
Ultra Librarian 3D Model	Ultra Librarian SS-668804S-A-PG4-AC CAD Model

Alternative Products

Description

This 90-degree angle shielded modular connector jack is designed for use in electronic devices that require high-speed data transmission..

Connector Type: Jack
Number of Rows: 1
Number of Positions / Contacts: 8
Termination: Soldered
Contact Finish Thickness: 30.0μin (0.76μm)
Contact Material: Copper Alloy
Housing Material: Thermoplastic
Number of Ports: 4
Shielded: Yes, with EMI Finger
Features: Board Guide
Mounting Type: Through Hole
Operating Temperature: -40°C to 85°C
Packaging: Bulk
Standard Package: 32 Connectors
