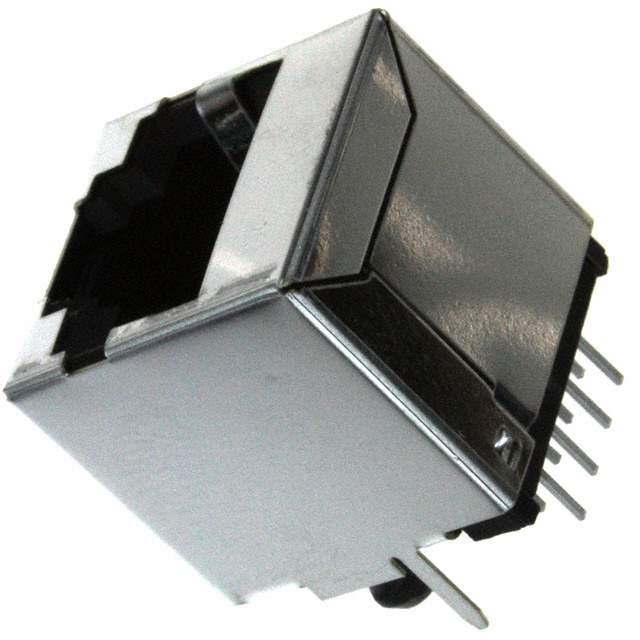

Same model may have multiple batches, images only for reference.

SS-7188VS-A-NF-50

Name: SS-7188VS-A-NF-50
Brand: Stewart Connector
SKU: 1294059
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SS-7188VS-A-NF-50
Manufacturer	Stewart Connector
Catalog	Modular Connectors
Datasheet	SS-7188VS-A-NF-50 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks
Mfr	Stewart Connector
Series	71V
Package	Tray
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	1
Number of Rows	1
Mounting Type	Through Hole
Orientation	Vertical
Termination	Solder
Shielding	Shielded
Ratings	Cat5
Features	Board Lock
LED Color	Does Not Contain LED
Tab Direction	User Selectable
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Housing Material	Thermoplastic
Temperature Range - Operating	-40°C ~ 85°C
Base Product Number	SS-7188V
Other Names	SS7188VS-A-NF-50,380-1162,SS7188VSANF50,SS-71800-029
Standard Package	80
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1294059-SS-7188VS-A-NF-50
Ultra Librarian 3D Model	Ultra Librarian SS-7188VS-A-NF-50 CAD Model

Alternative Products

Description

This jack connector is designed for use in modular connectors. It is part of the 71V series and has a vertical orientation.

Connector Series: 71V
Connector Type: Jack
Orientation: Vertical
Number of Rows: 1
Termination: Solder
Number of Positions/Contacts: 8
Shielding: Shielded
Contact Material: Copper Alloy
Contact Finish: Gold
Ratings: Cat5
Standard Package: 80
Operating Temperature: -40°C to 85°C
