Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Frequency Range 2.4GHz to 2.5GHz
Impedance - Unbalanced/Balanced 50 / 50 Ohm
Phase Difference 5°
Insertion Loss (Max) 1.5dB
Return Loss (Min) -17.5dB
Mounting Surface Mount
Win Source Part Number 71877-BALF-NRF01D3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name BALF-NRF01D3
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BALF-NRF01D3 CAD Model

Description

The BALF-NRF01D3 is a stand-out solution from STMicroelectronics, designed to streamline RF circuitry in wireless applications. This integrated balun with matching network and harmonics filter is specifically engineered to be used with the Nordic Semiconductor nRF51822 and nRF51422 SoCs, making it an ideal choice for Bluetooth Low Energy (BLE), ANT, and 2.4 GHz proprietary radio applications.

Key Features

  • High Integration: The BALF-NRF01D3 combines a balun, a harmonics filter, and matching components in a single package, significantly reducing the PCB space required and simplifying RF design.
  • Performance: It offers excellent RF performance with low insertion loss, which ensures efficient signal transmission and reception, contributing to the overall energy efficiency of the end application.
  • Compatibility: Specifically designed for the Nordic Semiconductor nRF51 series, it provides a perfect match, ensuring optimal performance and reducing the time spent on RF design and calibration.

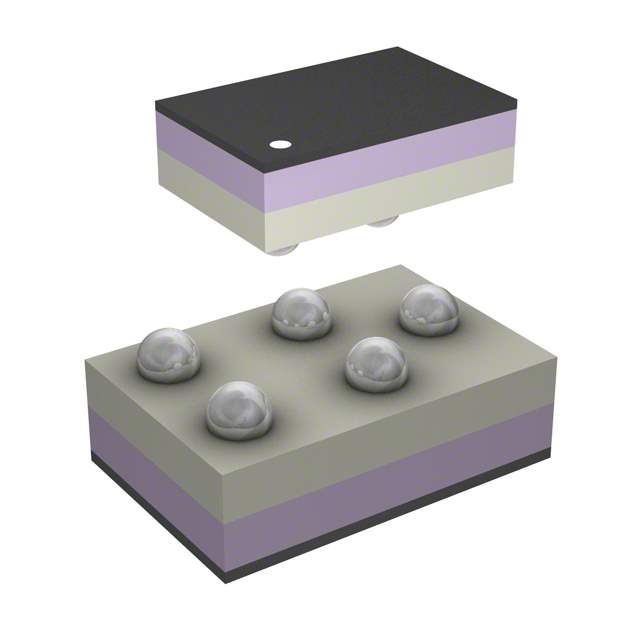

  • Miniaturized Package: Enclosed in a tiny 1.7 x 1.3 x 0.55 mm package, the BALF-NRF01D3 is perfect for space-constrained applications such as wearable technology, sensors, and IoT devices.
  • Robust Design: It is designed to withstand the rigors of real-world applications, with a robust construction that ensures long-term reliability.

Applications

The BALF-NRF01D3 is versatile and can be used in various applications, including:

  • Wearable Devices
  • Wireless Sensors
  • Internet of Things (IoT) Devices
  • Healthcare Monitoring Systems
  • Smart Home Automation
  • Fitness and Activity Monitors

Conclusion

STMicroelectronics' BALF-NRF01D3 is a powerful, integrated solution that provides designers with a simplified path to developing compact, high-performance wireless products. By integrating the balun, filter, and matching network into a single package, it not only saves space but also reduces the complexity of the RF design, allowing for faster time-to-market and reliable operation in the field. Whether for consumer electronics, healthcare, or industrial applications, the BALF-NRF01D3 is an excellent choice for enhancing wireless connectivity in the latest generation of smart devices.
