Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Microchip Technology
Series PIC® 16F
Package Tube
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity I²C, SPI
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 11
Program Memory Size 3.5KB (2K x 14)
Program Memory Type FLASH
EEPROM Size -
RAM Size 128 x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount

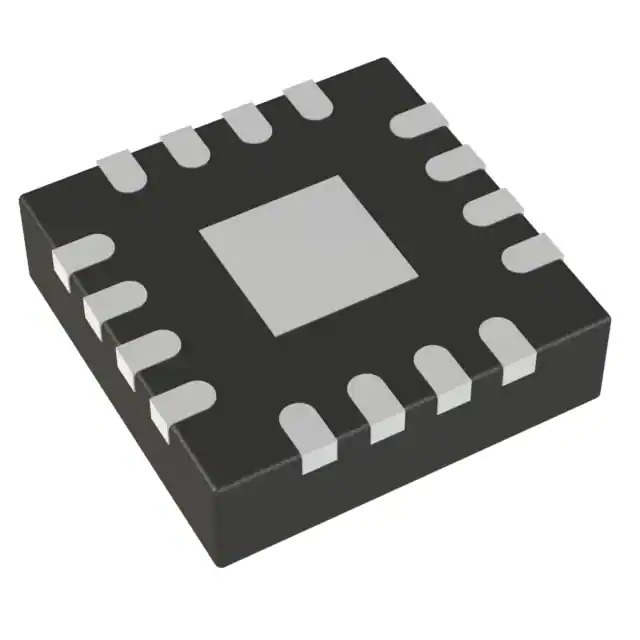

Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number PIC16LF1503
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1368774-PIC16LF1503-E/MG
Ultra Librarian 3D Model Ultra Librarian PIC16LF1503-E/MG CAD Model

Description

Microchip Technology's PIC16LF1503-E/MG

The PIC16LF1503-E/MG is a high-performance, 8-bit microcontroller from Microchip Technology designed for power-constrained and space-limited applications. This versatile MCU is part of Microchip's extensive PIC16F family, known for their ease of use and robust feature set. The PIC16LF1503-E/MG comes in a compact 16-pin QFN package, making it an ideal choice for applications where board space is at a premium.

With its integrated Enhanced Mid-range Core, this microcontroller offers a perfect balance between power efficiency and processing capability. The core provides a linear memory addressing of up to 14 KB, which is a significant advantage for developers who require straightforward programming and easy debugging. The PIC16LF1503-E/MG operates at a voltage range of 2.3V to 5.5V, ensuring flexibility in various power supply conditions and making it suitable for battery-operated devices.

This MCU is equipped with 3.5 KB of flash memory and 128 bytes of RAM, providing ample space for application code and data storage. Additionally, it boasts 256 bytes of EEPROM, which is ideal for non-volatile storage of configuration parameters or small amounts of data that must be retained during power cycles.

One of the standout features of the PIC16LF1503-E/MG is its comprehensive set of peripherals. It includes an ADC with up to 12 channels, allowing for precise analog to digital conversions. The device also features two PWM modules, comparator, and numerous communication interfaces such as I²C, SPI, and UART, providing excellent connectivity options for a wide range of applications.

For developers looking to implement custom timing functions or requiring precise event control, the MCU's four Timer modules and Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) come in handy. Furthermore, the integration of an internal 32 MHz oscillator eliminates the need for external clock sources, simplifying design and reducing component count.

Overall, the PIC16LF1503-E/MG microcontroller is a powerful and versatile solution for designers who need a compact, feature-rich MCU for their next project. Whether it's for industrial control systems, consumer electronics, or IoT devices, this microcontroller from Microchip Technology provides the performance and reliability that modern applications demand.
