The BD139, crafted by the renowned semiconductor manufacturer STMicroelectronics, is a versatile NPN bipolar junction transistor (BJT) that is widely employed in various electronic applications. This device is known for its high efficiency and reliability, making it an ideal choice for designers and engineers looking to develop robust electronic circuits.
Constructed with silicon epitaxial planar technology, the BD139 exhibits excellent power handling characteristics. It is capable of withstanding a collector-emitter voltage (VCEO) of up to 80 volts and can manage collector currents up to 1.5 amperes, making it suitable for moderate power switching and amplification tasks. The power dissipation of the BD139 is rated at 12.5 watts, which is substantial for its size, enabling it to handle a fair amount of power without overheating.
One of the key features of the BD139 transistor is its low saturation voltage, which enhances its efficiency in switching applications. This characteristic ensures that the transistor can switch on and off rapidly, minimizing energy loss and improving overall circuit performance. Additionally, the BD139 has a high current gain bandwidth product (fT), typically around 190 MHz, which means it can be used effectively in high-frequency driver stages and audio amplifiers.

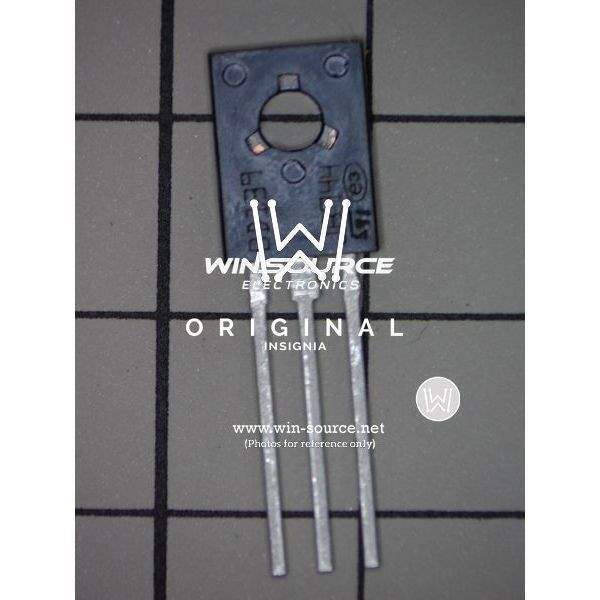

STMicroelectronics has designed the BD139 with a TO-126 package, which is a compact, through-hole package that is easy to mount on a printed circuit board (PCB). The robust construction of the TO-126 package provides good thermal performance and ensures a reliable mechanical connection.
The BD139 is also characterized by its versatility, being suitable for a wide range of applications including linear and switching operations. Common uses of this transistor include driver stages in hi-fi amplifiers, signal processing circuits, and power regulators. Its robustness also makes it a preferred choice for commercial, industrial, and educational environments where durability and consistent performance are required.
Overall, the BD139 NPN transistor by STMicroelectronics is a high-quality component that combines efficiency, power handling, and versatility, making it an essential part of the electronic components industry.
