Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr STMicroelectronics
Package Bulk
Product Status Active
Voltage - Off State 1 kV
Voltage - Gate Trigger (Vgt) (Max) 1.3 V
Current - Gate Trigger (Igt) (Max) 80 mA
Voltage - On State (Vtm) (Max) 1.9 V
Current - On State (It (AV)) (Max) 32 A
Current - On State (It (RMS)) (Max) 50 A
Current - Hold (Ih) (Max) 150 mA
Current - Off State (Max) 10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 580A, 610A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case RD-91
Supplier Device Package RD91
Base Product Number BTW67
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 848465-BTW67-1000
Ultra Librarian 3D Model Ultra Librarian BTW67-1000 CAD Model

Description

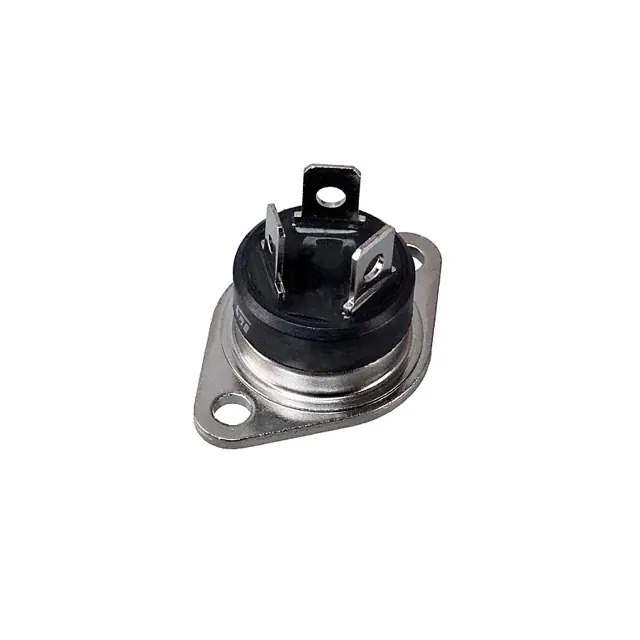

Overview of Product BTW67-1000 from STMicroelectronics

The BTW67-1000 is a robust silicon-controlled rectifier (SCR) designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This high-power SCR is engineered to handle a current of up to 50 A with a repetitive peak off-state voltage (VDRM) of 1000 V, making it an ideal choice for applications requiring efficient and reliable high-voltage operation.

Key Features

  • High Surge Capability: The BTW67-1000 is capable of withstanding surges without damage, ensuring reliability and longevity in harsh electrical environments.
  • High On-State Current (IT(AV)): With an average on-state current of 50 A, this SCR can handle significant power for a wide range of applications.
  • High Blocking Voltage: A repetitive peak off-state voltage of 1000 V provides the capability to control high voltage applications with ease.
  • Gate Trigger Current (IGT): The device has a low gate trigger current, making it easier to drive and control.

Applications

The BTW67-1000 is extremely versatile and can be used in a variety of applications, including:

  • Phase control operations in converters
  • Motor control circuits
  • Over-voltage crowbar protection
  • Battery chargers
  • Power switching circuits

Reliability and Quality

STMicroelectronics is committed to delivering high-quality products, and the BTW67-1000 is no exception. It is designed to meet stringent industry standards for performance and reliability. The device is encapsulated in a robust package that provides excellent thermal performance and ensures a long operational life.

Conclusion

The BTW67-1000 SCR from STMicroelectronics is a powerful and reliable semiconductor device that offers high surge capability, high blocking voltage, and a low gate trigger current. Its rugged design and versatile application range make it an excellent choice for designers seeking a high-performance SCR for their high-voltage control needs.
