Overview of BTW69-1200N

The BTW69-1200N is a robust and highly reliable silicon-controlled rectifier (SCR) designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This SCR is part of the BTW69 series, which is known for its high performance in power control and phase control applications. The BTW69-1200N is specifically engineered to handle high current and voltage, making it an ideal choice for a wide range of industrial and consumer applications.

Key Features

• High Blocking Voltage: With a maximum repetitive peak reverse voltage (VRRM) of 1200V, the BTW69-1200N can handle high voltage applications, ensuring reliability in demanding environments.
• High Surge Current: It offers an excellent surge current capability, which is crucial for applications that experience short-duration overvoltages, providing enhanced protection against electrical transients.
• High On-State Current: The device is rated for a maximum on-state current (IT(AV)) of 50A, which allows it to manage significant power levels in various applications.
• Thermal Resistance: With a low thermal resistance junction-to-case (Rth(j-c)), the BTW69-1200N ensures efficient heat dissipation, contributing to its reliability and longevity.
• Gate Trigger Current: The SCR has a specified gate trigger current (IGT) that ensures reliable triggering of the device under specified conditions.

Applications

The BTW69-1200N is suitable for an array of applications, including but not limited to:

• Phase control in converters
• AC controllers
• Motor control circuits
• Overvoltage crowbar protection
• Battery chargers
• Controlled rectifier bridges

Quality and Reliability

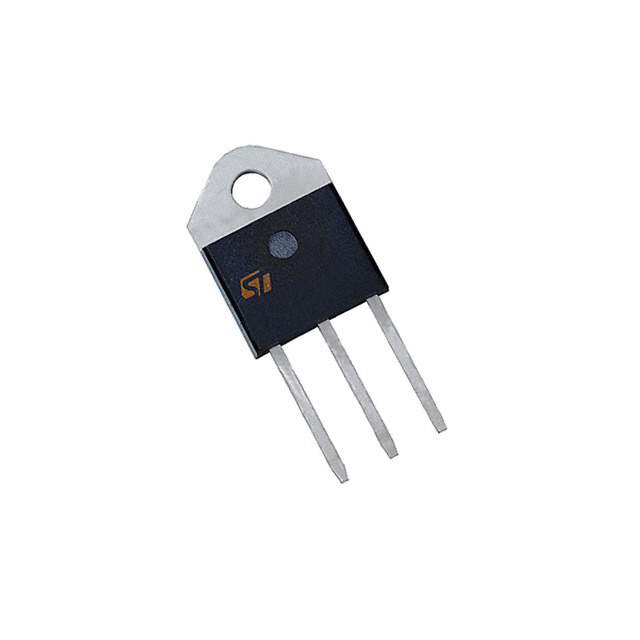

STMicroelectronics ensures that the BTW69-1200N, like all its products, undergoes rigorous testing and quality control measures. The device is encapsulated in a TO-3PN package, which provides robust mechanical protection and ensures optimal thermal and electrical performance. Users can rely on the BTW69-1200N for consistent and dependable operation in their circuit designs.

With its combination of high voltage and current capabilities, thermal efficiency, and STMicroelectronics' commitment to quality, the BTW69-1200N stands out as a superior choice for designers seeking a high-power SCR for their demanding applications.
