Products specifications

Category Circuit Protection>TVS - Diodes
Mfr STMicroelectronics
Series BZW06, TRANSIL™
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 10.2V
Voltage - Breakdown (Min) 11.4V
Voltage - Clamping (Max) @ Ipp 21.7V
Current - Peak Pulse (10/1000µs) 184A (8/20µs)
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 2300pF @ 1MHz
Mounting Type Through Hole

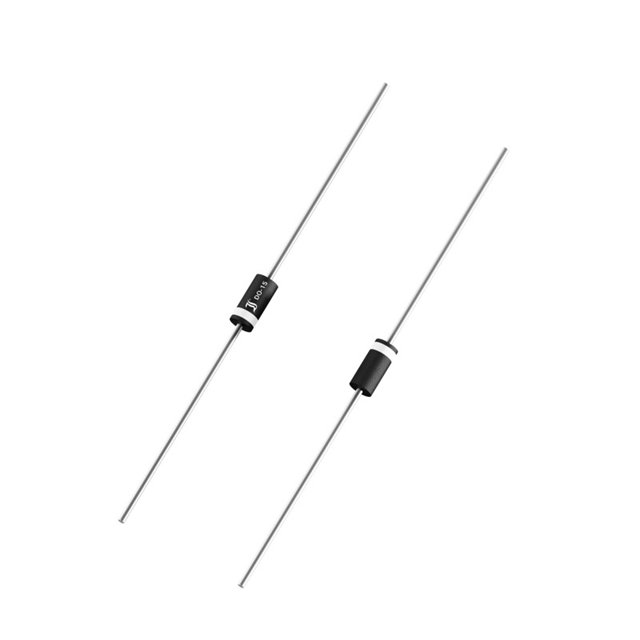

Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15 (DO-204AC)
Base Product Number BZW06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names -497-12460-3,-497-12460-1,BZW0610,497-12460-1,497-12460-3,BZW06-10-ND
Standard Package 1,000
Win Source Part Number 1113739-BZW06-10
Ultra Librarian 3D Model Ultra Librarian BZW06-10 CAD Model

Description

The STMicroelectronics BZW06-10 is a robust Transil diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is a part of the BZW06 series, which is well-known for its high surge capability and fast response time, making it an ideal choice for a wide range of applications requiring transient voltage suppression (TVS).

Key Features

  • Stand-off Voltage: This device has a stand-off voltage of 10V, which refers to the maximum voltage that can be applied while the device remains in a non-conductive state.
  • Peak Pulse Power: It can handle a peak pulse power of 600W (10/1000μs surge), ensuring effective protection against high energy transients.
  • Fast Response Time: With its sub-nanosecond response time to transient overvoltages, it is highly effective at protecting sensitive circuit components.
  • Low Clamping Voltage: The BZW06-10 offers a low clamping voltage, which minimizes the stress on the protected component at the time of the transient event.
  • Unidirectional and Bidirectional Versions: It is available in both unidirectional and bidirectional configurations, providing design flexibility to meet specific circuit requirements.

Applications

The BZW06-10 is suitable for a variety of applications, including:

  • Power supply protection
  • Industrial systems
  • Telecommunication devices
  • Computer systems
  • Consumer electronics

Quality and Reliability

Manufactured by STMicroelectronics, a leader in semiconductor solutions, the BZW06-10 is built to the highest quality standards. The device meets IEC 61000-4-2 and IEC 61000-4-5 standards, ensuring reliability in harsh electrical environments. It is also RoHS compliant, making it suitable for use in environmentally sensitive applications.

Package and Availability

The BZW06-10 is available in a DO-15 package, which is designed for through-hole mounting, making it easy to integrate into existing designs. It is also available in tape and reel packaging for automated assembly processes, ensuring efficient manufacturing and reduced production costs.
