Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 14.2V
Max Clamping Voltage 21V
Peak Pulse Current(Ippm) 14A (8/20μs)
Power Dissipation - Pd 300W
Applications Automotive
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-5
Win Source Part Number 101757-ESDA14V2SC5Y
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESDA14V2SC5Y CAD Model

Description

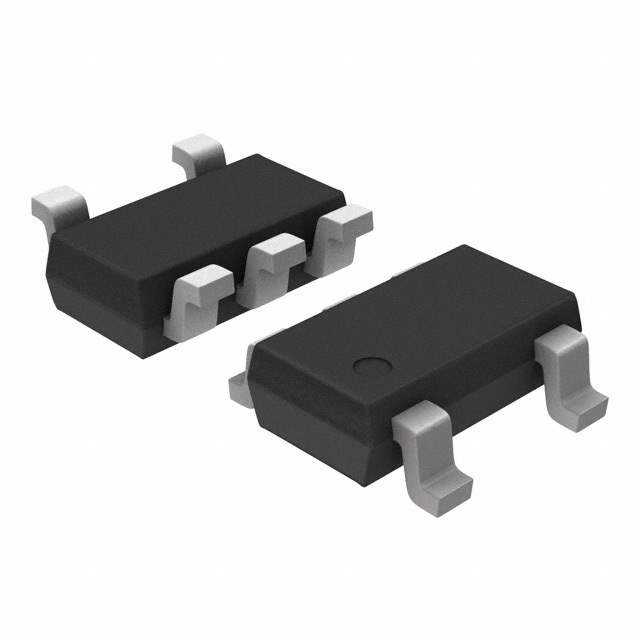

STMicroelectronics ESDA14V2SC5Y Transient Voltage Suppressor

The ESDA14V2SC5Y from STMicroelectronics is a state-of-the-art transient voltage suppressor (TVS) designed to protect sensitive electronics from electrostatic discharge (ESD) and other voltage-induced transient events. This device is specifically engineered to safeguard high-speed data lines and other vulnerable circuits against the detrimental effects of ESD, which can compromise electronic integrity and longevity.

With its bidirectional clamping functionality, the ESDA14V2SC5Y is capable of addressing ESD strikes from both positive and negative transients, ensuring comprehensive protection for your electronic components. The device features a low clamping voltage, which is essential for preserving the integrity of delicate circuits during a transient event. This characteristic is particularly important for applications where precision and accuracy are paramount.

The ESDA14V2SC5Y comes in a compact SOT-23-5L package, making it an ideal choice for space-constrained applications. Despite its small size, it delivers robust protection with a high surge capability, ensuring that it can handle even the most severe ESD events. This TVS diode is suitable for protecting a wide range of applications, including USB interfaces, computer ports, and other high-speed data lines that require reliable ESD protection.

Key features of the ESDA14V2SC5Y include:

  • Low clamping voltage for sensitive circuit protection
  • High surge capability to withstand severe ESD events
  • Fast response time to transient events, ensuring quick and effective protection
  • Low leakage current to minimize power consumption when the device is idle
  • Compliance with international standards, including IEC 61000-4-2 for ESD immunity
  • Bidirectional clamping to protect against both positive and negative transients

Whether you're designing consumer electronics, communication devices, or any other application where ESD protection is critical, the ESDA14V2SC5Y from STMicroelectronics provides the reliability and performance needed to maintain system integrity and extend product life. By integrating this TVS diode into your design, you can ensure that your products are robustly protected against the unpredictable nature of transient voltage events.
