Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer STMicroelectronics
Series VIPower
Main Purpose Power Management, High Side Driver (Internal FET)
Utilized IC / Part VND7050AJ
Primary Attributes 2-Channel (Dual)
Supplied Contents Board(s)
Win Source Part Number 772356-EV-VND7050AJ
Popularity Medium
Supply and Demand Status Limited
Family Name EV-VND7050AJ
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian EV-VND7050AJ CAD Model

Description

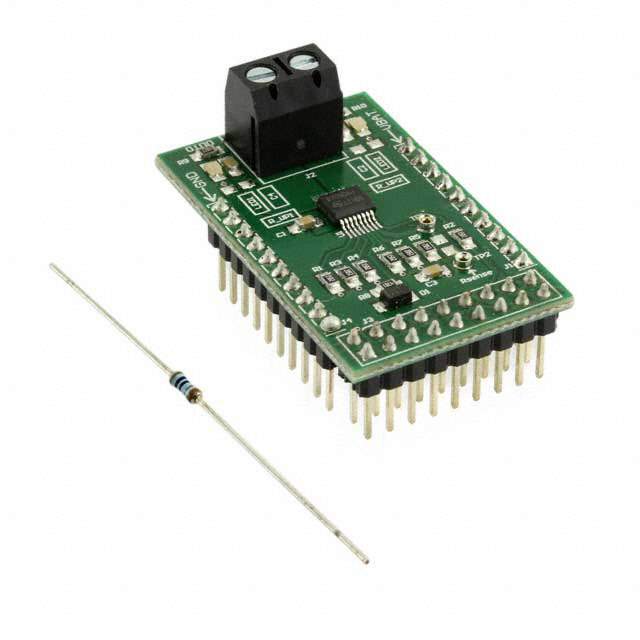

EV-VND7050AJ Evaluation Board from STMicroelectronics

The EV-VND7050AJ from STMicroelectronics is an advanced evaluation board designed for engineers and developers looking to explore the capabilities of the VND7050AJ High-Side Driver. This board is an ideal tool for rapid prototyping and testing in automotive applications, industrial control systems, and any scenario where a robust and efficient high-side switch is required.

The VND7050AJ is a member of STMicroelectronics' VIPower M0-7 series. It is an automotive-grade, high-side driver integrated circuit (IC) that can handle high current loads with a wide range of operating voltages. This makes it highly suitable for driving resistive, inductive, and capacitive loads, including filament bulbs, LEDs, motors, and valves.

Featuring built-in diagnostic functions, the EV-VND7050AJ evaluation board allows developers to monitor various parameters such as load current, voltage, and temperature. These features are critical for ensuring the reliability and safety of the system, particularly in the demanding environments often found in automotive applications.

One of the key advantages of the VND7050AJ is its robust design, which includes protections against overcurrent, overtemperature, and electrical transients. This ensures that the board can withstand the harsh conditions often encountered in real-world applications. Additionally, the VND7050AJ comes with an integrated current limiter, thermal shutdown, and overvoltage clamp, providing a comprehensive protection package for the connected load.

The evaluation board is user-friendly, with a straightforward layout that provides easy access to the VND7050AJ's features. It includes connectors and test points for convenient interfacing with external equipment and for conducting thorough evaluations of the driver's performance. Furthermore, the board is compatible with the standard development environment, allowing for seamless integration into existing projects.

In summary, the EV-VND7050AJ evaluation board is a powerful and versatile tool that leverages the performance and reliability of the VND7050AJ high-side driver IC. It is an excellent choice for developers who need a reliable solution for controlling high-power loads in automotive and industrial applications.
