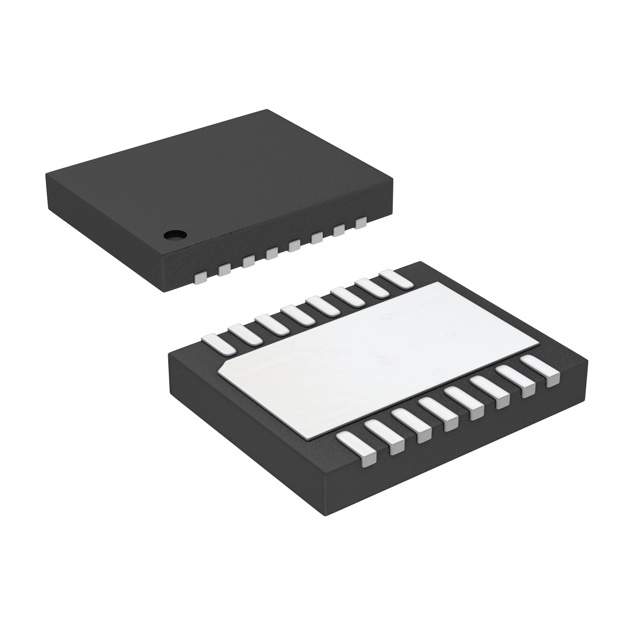

STMicroelectronics HDMI2C1-5DIJ HDMI ESD Protection Device

The HDMI2C1-5DIJ from STMicroelectronics is a high-performance HDMI interface ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This component is particularly suitable for applications that require robust protection for HDMI ports, such as digital TVs, set-top boxes, and other multimedia devices.

Featuring an advanced design, the HDMI2C1-5DIJ integrates low-capacitance diodes to protect each of the HDMI lines, ensuring signal integrity while providing a high level of protection for sensitive circuitry. The device is capable of withstanding ESD discharges up to 8 kV (contact discharge) and 15 kV (air discharge) in accordance with the IEC 61000-4-2 standard, offering peace of mind for both manufacturers and end-users against common electrostatic occurrences.

The HDMI2C1-5DIJ comes in a compact SOT23-6L package, making it an ideal choice for space-constrained applications. Its small footprint allows designers to integrate ESD protection into their designs without significantly increasing the overall size of their products. Additionally, the device features a low line capacitance, which minimizes signal attenuation and preserves the high bandwidth required for the latest HDMI specifications, including features such as 4K video, 3D, and Ethernet over HDMI.

Thanks to its low clamping voltage, the HDMI2C1-5DIJ ensures that any transient voltage spikes are quickly suppressed, protecting the downstream HDMI chipset from potential damage. This characteristic is crucial for maintaining the longevity and reliability of consumer electronics that frequently interface with external HDMI sources.

In summary, the HDMI2C1-5DIJ from STMicroelectronics is an essential component for any design requiring HDMI connectivity. Its combination of ESD protection, low capacitance, and small package size makes it an excellent choice for safeguarding high-speed digital interfaces against the rigors of daily use and unexpected electrical events.

Key Features:

• ESD protection up to 8 kV (contact) and 15 kV (air) as per IEC 61000-4-2
• Low line capacitance to maintain signal quality
• Low clamping voltage for enhanced protection
• Compact SOT23-6L package for space-sensitive applications
• Suitable for HDMI 1.4/2.0/2.1 and other high-speed data line applications
