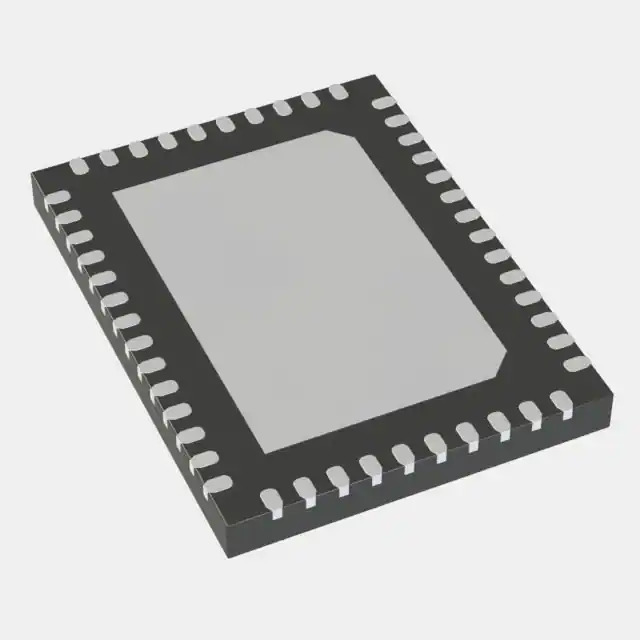

The IPS1025HQ from STMicroelectronics is a state-of-the-art Intelligent Power Switch (IPS) designed to cater to a wide range of applications that demand robust and reliable power switching capabilities. This high-quality component is part of the ST's IPS family, which is renowned for integrating the control and power stage of a power switch into a single device.

Key Features

• Current Rating: The IPS1025HQ offers a continuous current rating of up to 8A, making it suitable for handling moderate to high current loads.
• High Voltage Capability: With a clamping voltage up to 45V, this switch is well-suited for automotive and industrial applications that require a higher operational voltage range.
• Low On-Resistance: The device boasts a low on-resistance, which translates to reduced power dissipation and improved efficiency during operation.
• Over-temperature Protection: The built-in over-temperature protection feature ensures the switch operates within safe temperature limits, thereby preventing thermal damage.
• Short-circuit Protection: The IPS1025HQ is equipped with short-circuit protection, safeguarding the switch and the load in the event of a fault condition.
• Diagnostic Feedback: This intelligent switch provides diagnostic feedback, which can be used to monitor the status of the switch and the load, enhancing system reliability.
• ESD Protection: The device includes Electrostatic Discharge (ESD) protection, which protects the switch from unforeseen ESD events during handling and operation.

Applications

The versatility of the IPS1025HQ makes it an ideal choice for a variety of applications, including but not limited to:

• Automotive systems such as body control modules and power distribution units
• Industrial automation systems
• Smart home and IoT devices
• Power management modules
• DC motor control circuits

Conclusion

With its robust design, comprehensive protection features, and diagnostic capabilities, the IPS1025HQ from STMicroelectronics represents a reliable and efficient solution for designers seeking to integrate intelligent power switching into their applications. Whether for automotive, industrial, or consumer electronics, the IPS1025HQ brings performance and peace of mind to any power management task.
