Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 33 Weeks
Features Accelerometer, Gyroscope, Temperature, 6 Axis Sensor I²C, SPI Output
Manufacturer STMicroelectronics
Series iNEMO
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 14-VFLGA Module

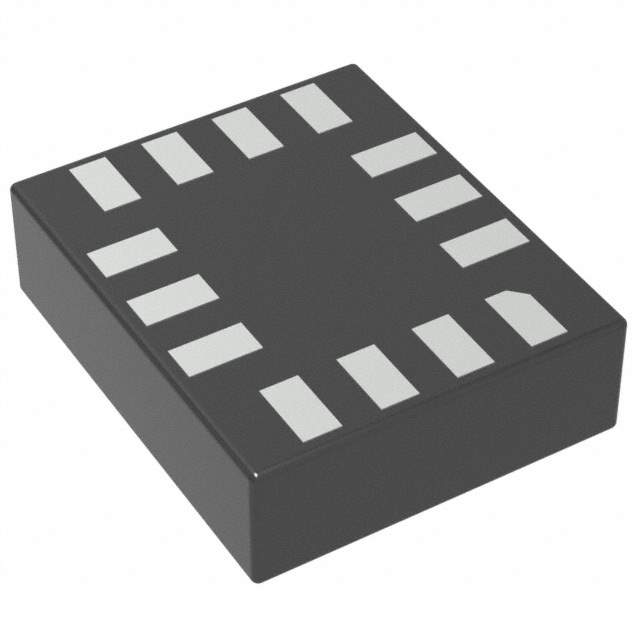

Case / Package 14-LGA (2.5x3)
Family Name ISM330
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 497-17583-6, 497-17583-1, 497-17583-2
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844247-ISM330DLCTR
Ultra Librarian 3D Model Ultra Librarian ISM330DLCTR CAD Model

Description

Overview of ISM330DLCTR from STMicroelectronics

The ISM330DLCTR is a state-of-the-art inertial measurement unit (IMU) from STMicroelectronics, designed to cater to the demanding needs of the modern industrial and consumer markets. This compact, high-performance device integrates a 3D digital accelerometer and a 3D digital gyroscope into a single package, offering a complete system-in-package solution for motion sensing in three dimensions.

Key Features

  • High Precision: The device boasts high-resolution measurement capabilities with low noise and advanced digital output for both the accelerometer and gyroscope.
  • Wide Range: It offers a selectable full-scale range for the accelerometer (±2/±4/±8/±16 g) and the gyroscope (±125/±250/±500/±1000/±2000 dps), making it versatile for various applications.
  • Embedded Intelligence: ISM330DLCTR comes with an array of smart features such as programmable finite state machines, machine learning core, and advanced power-saving and single data conversion on demand.
  • Enhanced Connectivity: The device includes I2C and SPI serial interface options, ensuring easy integration with a multitude of microcontroller units (MCUs).

Applications

The ISM330DLCTR is ideal for a wide range of applications, including:

  • Industrial IoT and robotics
  • Navigation systems
  • Vibration monitoring and compensation
  • Drone and unmanned vehicle stabilization
  • Wearable devices for health and fitness monitoring

Reliability and Robustness

Designed with the industrial environment in mind, the ISM330DLCTR is built to withstand harsh conditions, featuring a robust design that ensures reliable performance over a temperature range from -40°C to +85°C. It also has high shock survivability, which is crucial for industrial and automotive applications.

Eco-Friendly and Regulatory Compliance

STMicroelectronics is committed to environmental sustainability. The ISM330DLCTR is compliant with RoHS and Green Product requirements, ensuring minimal environmental impact. It is also designed to meet the stringent requirements of ISO 26262 for automotive safety integrity levels, making it suitable for automotive applications.

With its combination of performance, intelligence, and reliability, the ISM330DLCTR from STMicroelectronics is an excellent choice for developers looking to integrate advanced motion sensing capabilities into their designs.
