Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushless DC (BLDC)
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Applications General Purpose
Output Current 2.5A
Supply Voltage - Operating 8 V to 52 V
Voltage - Load 8 V to 52 V
Temperature Range - Operating -25°C to 125°C (TJ)
Mounting SMD (SMT)

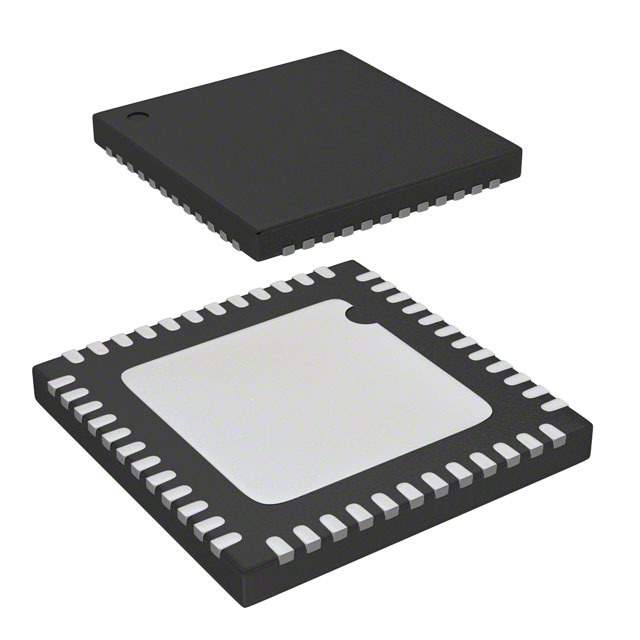

Case / Package 48-QFN (7x7)
Win Source Part Number 1051295-L6235QTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name L6235Q
Introduction Date July 30, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian L6235QTR CAD Model

Description

The L6235QTR from STMicroelectronics is a state-of-the-art motor driver integrated circuit designed to drive both winding of a bipolar stepper motor or bidirectionally control two DC motors. Built with advanced DMOS technology, this device is capable of delivering up to 2.8A with operating voltages ranging from 8V to 52V, making it an excellent choice for a wide array of applications.

Key Features

  • Operating Voltage Range: The L6235QTR operates efficiently across a broad voltage range of 8V to 52V, accommodating various power requirements for numerous applications.
  • High Output Current: With the capability to deliver up to 2.8A, this driver can power motors suitable for a diverse range of industrial and consumer applications.
  • Advanced Protection Features: The device includes overcurrent protection, thermal shutdown, and non-dissipative overcurrent detection, ensuring safe operation and longevity of the motor driver.
  • Low RDS(on) Outputs: The low RDS(on) characteristic of the output stages translates to reduced power dissipation and improved efficiency.
  • Integrated Fast Decay Synchronous Rectification: This feature aids in reducing power dissipation during PWM operation, further enhancing the efficiency of the motor driver.

Applications

The L6235QTR is versatile and can be employed in a variety of applications. These include, but are not limited to:

  • Office automation machines such as printers, copiers, and scanners
  • Factory automation and robotics
  • Consumer electronics
  • Textile machines
  • ATM and cash handling machines

Design Support

STMicroelectronics provides comprehensive design support for the L6235QTR, including detailed datasheets, application notes, and evaluation boards. This support simplifies the integration of the motor driver into your design and accelerates the development process.

In conclusion, the L6235QTR motor driver from STMicroelectronics is a robust, versatile, and efficient solution for driving motors in a wide range of applications. Its advanced features and support make it a reliable choice for designers seeking performance and durability.
