Products specifications

Reference Date Code 16+
Reference case HSOP
Manufacturer STMicroelectronics
Manufacturer Homepage www.st.com
Win Source Part Number 754137-L9959S-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L9959S-TR CAD Model

Description

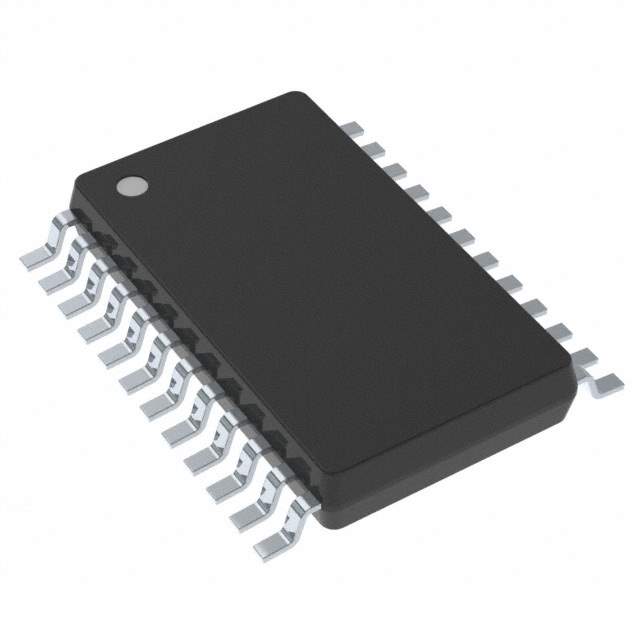

Product Overview: L9959S-TR by STMicroelectronics

The L9959S-TR is a robust and advanced automotive door actuator driver integrated circuit (IC) designed by STMicroelectronics, a leader in semiconductor solutions. This high-quality product is specifically tailored to meet the stringent requirements of modern automotive applications, ensuring reliability and efficiency in vehicle door control systems.

Key Features

  • Multiple Output Configurations: The L9959S-TR supports various output configurations, including high-side, low-side, and H-bridge arrangements, providing flexibility in controlling different types of loads.
  • Integrated Protection Features: It comes with a comprehensive set of protection features such as overcurrent, overtemperature, and undervoltage shutdown, which safeguard the IC and the system it controls against potential damage.
  • Diagnostic Functions: Built-in diagnostic capabilities enable detection of open-load, short-circuit, and loss of ground, which are critical for maintaining the system's integrity and performance.
  • High Voltage Capability: The device is designed to operate at a broad range of supply voltages, making it suitable for 12V automotive power systems and capable of withstanding transient conditions.
  • Serial Peripheral Interface (SPI): The L9959S-TR includes an SPI interface for communication with microcontrollers, allowing for precise control and real-time monitoring of the driver's status.

Applications

The versatility and robustness of the L9959S-TR make it ideal for a wide array of automotive applications, particularly in power door lock systems, where precise control and reliability are paramount. It can also be used for mirror folding and adjustment, window lifters, and other automotive actuator-driven functionalities.

Quality and Reliability

STMicroelectronics is committed to delivering products that meet the highest standards of quality and reliability. The L9959S-TR is manufactured with this commitment in mind, ensuring that it performs consistently over its lifetime, even in the harsh environments typical of automotive applications.

Product Packaging

The "TR" suffix in the product name indicates that this IC is provided in tape and reel packaging, which is suitable for automated assembly processes, ensuring efficient and cost-effective manufacturing for automotive suppliers and OEMs.

With its advanced features, the L9959S-TR by STMicroelectronics represents a state-of-the-art solution for automotive actuator driving, offering designers a reliable and high-performance component for their next-generation vehicle systems.
