Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.225V @ 50mA
Output Current 50mA
Operating Supply Current 150μA to 1.2mA
PSRR 63dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.12V @ 50mA
Mounting SMD (SMT)

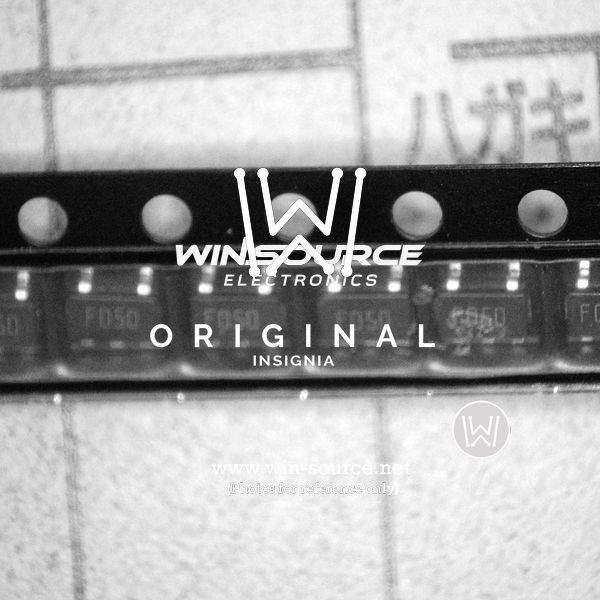

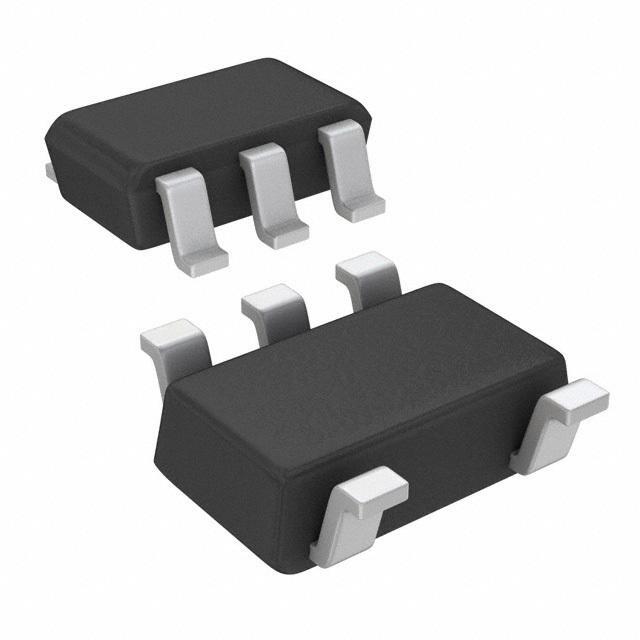

Case / Package SOT-23-5
Win Source Part Number 018533-LD2980ABM50TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LD2980ABM50TR CAD Model

Description

The LD2980ABM50TR is a high-performance, low-dropout voltage regulator designed and manufactured by the renowned semiconductor company, STMicroelectronics. This device is specifically engineered to provide a stable and reliable voltage supply, making it an ideal choice for sensitive electronic applications where voltage precision is critical.

Key Features

  • Output Voltage: The LD2980ABM50TR offers a fixed output voltage of 5.0V, which is suitable for a broad range of digital and analog circuits.
  • Low Dropout: With a low dropout voltage, this regulator maintains its output stability even when the input voltage is very close to the output voltage, which is essential for battery-powered devices.
  • High Accuracy: The output voltage tolerance is within ±1%, ensuring precise voltage regulation for sensitive components.
  • Current and Thermal Limiting: The device includes built-in current limiting and thermal protection features to safeguard against overcurrent and overheating scenarios.
  • Low Ground Current: The low ground current characteristic of this LDO helps in enhancing the battery life of portable devices by reducing power consumption.
  • Surface-Mount Package: The LD2980ABM50TR comes in a compact SOT-23 package, which is ideal for space-constrained applications.

Applications

The versatility of the LD2980ABM50TR allows it to be used in a wide array of applications, including but not limited to:

  • Battery-powered equipment
  • Portable consumer devices
  • Mobile phones and PDAs
  • Electronic toys and games
  • PC peripherals
  • Wireless LANs

Technical Specifications

The LD2980ABM50TR operates within an input voltage range of 2.5V to 16V and can supply a maximum output current of 50mA. It is characterized by a very low quiescent current, which is typically 0.2mA, and a maximum quiescent current of 1mA in the off mode. The device's temperature range spans from -40°C to +125°C, making it reliable across various environmental conditions.

For engineers and designers looking for a dependable voltage solution, the LD2980ABM50TR from STMicroelectronics offers a combination of performance, efficiency, and miniaturization that can meet the requirements of today's advanced electronic circuits.
