Products specifications

Categories Sensors, Transducers
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g
Sensitivity (LSB/g) 1000 (±2g) to 256 (±8g)
Bandwidth 25Hz to 500Hz
Output Type I2C, SPI
Supply Voltage - Operating 2.16 V to 3.6 V
Features Adjustable Bandwidth, Selectable Scale, Sleep Mode
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-LGA (3x3)
Win Source Part Number 018607-LIS331DLHTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LIS331DLH
Introduction Date October 16, 2008
ECCN EAR99
Country of Origin Malta, Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian LIS331DLHTR CAD Model

Description

STMicroelectronics LIS331DLHTR Accelerometer

The LIS331DLHTR is a high-performance, ultra-low-power 3-axis "nano" accelerometer belonging to the "eco-friendly" product line from STMicroelectronics. This compact sensor provides precise acceleration data with a digital I2C/SPI serial interface output, making it a popular choice for mobile applications and various other fields where space constraints and energy efficiency are critical factors.

Featuring a full-scale range of ±2g/±4g/±8g, the LIS331DLHTR can measure accelerations with output data rates from 50 Hz to 1 kHz. It is designed to operate over an extended temperature range from -40°C to +85°C, ensuring reliable performance across diverse environments.

One of the key advantages of this sensor is its embedded intelligence, which includes features such as:

  • High-resolution detection of acceleration along all three axes, with 16-bit data output.
  • Programmable interrupt generators for free-fall and motion detection, which can be used for advanced system power-saving and user interface functionalities.
  • Sleep-to-wakeup function, enabling power conservation between active measurements.

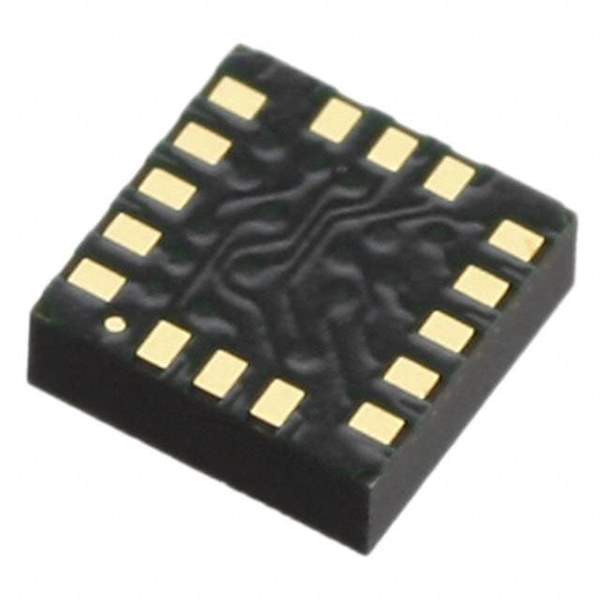

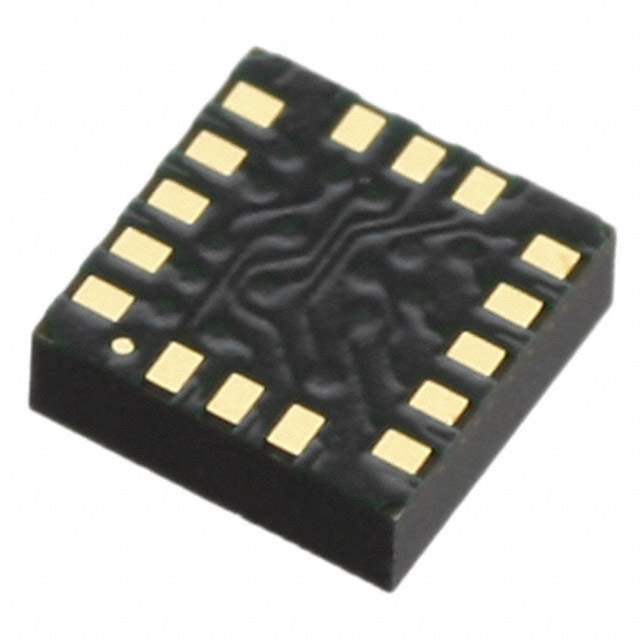

The LIS331DLHTR is housed in a small thin plastic land grid array package (LGA) that is environmentally friendly, lead-free, and compliant with RoHS/REACH regulations. Its small footprint and low profile (3x3x1mm) make it an ideal choice for portable device integration.

Common applications for the LIS331DLHTR include:

  • Smartphones and tablets
  • Gaming and virtual reality input devices
  • Impact recognition and logging systems
  • Vibration monitoring and compensation
  • Navigation and telematics

STMicroelectronics' commitment to innovation and sustainability is evident in the LIS331DLHTR, offering designers a robust and eco-friendly solution for motion sensing requirements. With its advanced features and versatile application range, this accelerometer is a solid choice for adding reliable motion detection to your next project.
