LIS3DHTR

Part No LIS3DHTR
Manufacturer STMicroelectronics
Catalog Motion Sensors - Accelerometers
Description ACCEL 2-16G I2C/SPI 16LGA
Datasheet
Sample
Rohs State Need to verify
ECAD Module ECAD

Shipping Information

Shipped from HK warehouse
Expected Shipping Date
Ship today if order in (HKT)
Supplier Lead-Time Call for availability
Estimate shipping fee
Enter your destination to get a shipping estimate
Estimate Shipping Fee
Pricing & Ordering $0.320 Historical reference price : is the price that a customer announces that it is willing to pay for this component in the previous period, only for reference.
Quantity
Unit Price
Ext. Price
125+
$0.4100
$51.250
300+
$0.3370
$101.100
465+
$0.3260
$151.590
635+
$0.3160
$200.660
820+
$0.3050
$250.100
1,095+
$0.2740
$300.030
* The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Availability: 1,276,000 pieces
MOQ: 125 pcs
Order Increment : 1 pcs
*Need More Quantity? *Request a Bulk Quantity Quotation?
Estimate shipping
Enter your destination to get a shipping estimate

*

Products specifications

Categories Sensors, Transducers
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 1000 (±2g) to 83 (±16g)
Bandwidth 0.5Hz to 625Hz
Output Type I2C, SPI
Supply Voltage - Operating 1.71 V to 3.6 V
Features Adjustable Bandwidth, Selectable Scale, Temperature Sensor
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

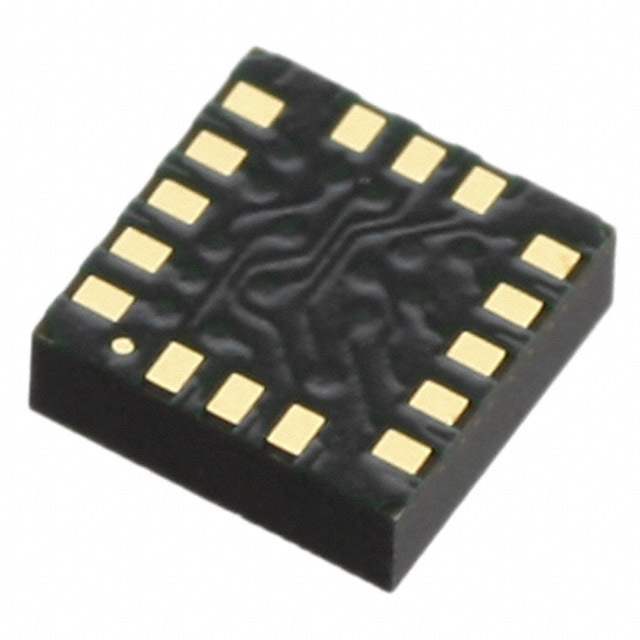

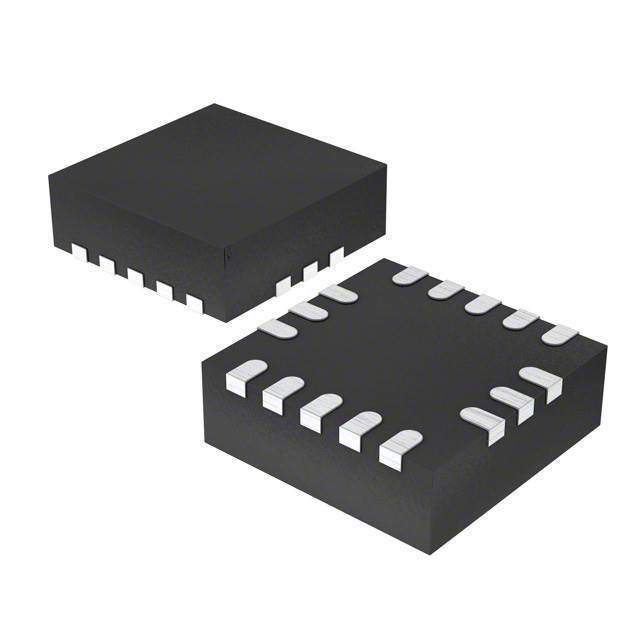

Case / Package 16-LGA (3x3)
Win Source Part Number 018609-LIS3DHTR
Family Name LIS3DH
Introduction Date May 21, 2010
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Fake Threat In the Open Market 72 pct.
Supply and Demand Status Sufficient
Alternative Parts
(Cross-Reference)
ADXL346ACCZ-RL7;  ADXL372BCCZ-RL7; ADXL346ACCZ-R2;

Description

LIS3DHTR Accelerometer by STMicroelectronics

The LIS3DHTR is a high-performance three-axis linear accelerometer belonging to the "nano" family, with digital I2C/SPI serial interface standard output. Manufactured by STMicroelectronics, this MEMS (Micro-Electro-Mechanical Systems) device is designed to cater to the demanding needs of mobile applications and IoT devices where low power consumption and compact footprint are critical.

This versatile sensor features ultra-low-power operational modes that allow advanced power-saving and smart sleep-to-wakeup functions. The LIS3DHTR supports multiple measuring ranges, including ±2g/±4g/±8g/±16g, which can be selected depending on the requirements of the application. This adaptability ensures high-resolution measurements for different types of motion detection.

One of the distinguishing features of the LIS3DHTR is its ability to detect free fall, motion, and shock events. This makes it an ideal choice for a variety of consumer electronics, such as mobile phones, tablets, fitness trackers, and gaming devices, as well as for industrial applications like vibration monitoring and impact recognition.

The device is equipped with an embedded FIFO (First In First Out) buffer, allowing the host processor to save power by accessing the data less frequently. The LIS3DHTR also includes a temperature sensor and can operate over a temperature range from -40°C to +85°C, ensuring reliability in a wide range of environments.

With its small form factor, the LIS3DHTR comes in a thin plastic land grid array package (LGA) and is guaranteed to operate over an extended voltage range from 1.71 V to 3.6 V. This makes the LIS3DHTR a highly integrable and robust solution for system designers looking to enhance motion and gesture detection without compromising on space or power efficiency.

STMicroelectronics has ensured that the LIS3DHTR is not only powerful and versatile but also easy to integrate into various platforms, providing comprehensive development support and a wealth of application notes to facilitate product development and shorten time-to-market.
