Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Amplifier Type General Purpose
Number of Circuits 4
Slew Rate 0.4 V/μs
Gain Bandwidth Product (GBP) 1.3MHz
Current - Input Bias 20nA
Voltage - Input Offset 2mV
Operating Supply Current 1.5mA
Channel Output Current 70mA
Supply Voltage - Operating 3 V to 30 V, ±1.5 V to 15 V
Temperature Range - Operating -40°C to 105°C
Mounting SMD (SMT)
Case / Package 14-SO
Win Source Part Number 018687-LM224DT
Family Name LM224
Introduction Date November 01, 1995
ECCN EAR99
Country of Origin Morocco
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian LM224DT CAD Model

Description

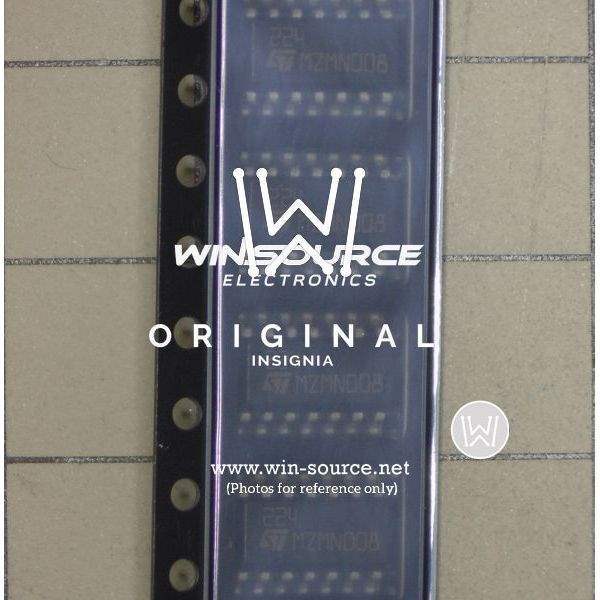

STMicroelectronics LM224DT Operational Amplifier

The LM224DT from STMicroelectronics is a versatile and robust operational amplifier that is part of the LMx24 series, designed to offer a perfect balance of performance and cost-effectiveness. This op-amp is particularly suitable for a wide range of applications, including industrial, automotive, and consumer electronics, thanks to its stable operation and reliability.

Enclosed in a compact SO-14 package, the LM224DT features four independent high-gain operational amplifiers on a single monolithic chip. It operates over a wide range of power supply voltages, from a single supply of 3 volts up to 32 volts or dual supplies of ±1.5 volts to ±16 volts. This flexibility makes it an excellent choice for battery-powered devices and applications with varying power supply requirements.

With a large output voltage swing and an input common-mode voltage range that includes ground, the LM224DT is optimized for direct coupling to several signal sources and outputs, thus reducing the need for external components and simplifying circuit design. The device also exhibits low input bias and offset currents, which is essential for precision applications.

Key features of the LM224DT include:

  • Low power consumption, which is critical for energy-sensitive applications.
  • Wide gain bandwidth product and high slew rate, ensuring good dynamic response.
  • Internal frequency compensation, which provides stability without the need for additional external components.
  • Short-circuit protection and high ESD tolerance, contributing to the device's robustness and longevity.

Whether it's being used in sensor interfaces, active filters, or general feedback applications, the LM224DT offers a reliable and high-performance solution. Its ease of use and integration into various circuits, combined with STMicroelectronics' commitment to quality, make it a go-to operational amplifier for designers and engineers looking to optimize their systems without compromising on cost or performance.

For detailed specifications, application circuits, and typical usage scenarios, designers are encouraged to refer to the datasheet provided by STMicroelectronics.
