Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Memory Format EPROM
Technology EPROM - UV
Memory Size 2Mb (256K x 8)
Access Time 150ns
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating 0°C to 70°C (TA)
Mounting Through Hole
Case / Package 32-CDIP Frit Seal with Window
Win Source Part Number 038016-M27C2001-15F1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name M27C2001
Introduction Date April 01, 1999
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian M27C2001-15F1 CAD Model

Description

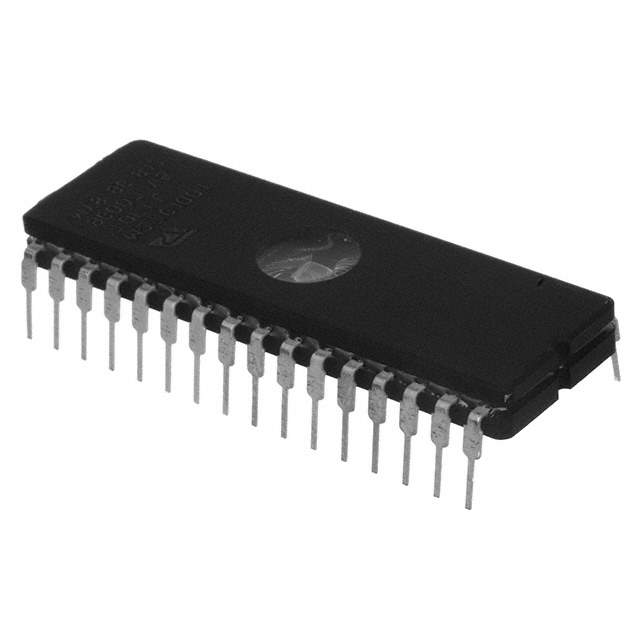

STMicroelectronics M27C2001-15F1 EPROM

The M27C2001-15F1 is a high-speed 2 Mbit EPROM (Erasable Programmable Read-Only Memory) produced by STMicroelectronics. This memory device offers a storage capacity of 2 megabits, organized as 256K by 8 bits. It is designed for applications that require fast access to data and a reliable non-volatile memory solution. The -15F1 suffix indicates a 150 ns access time, making this EPROM suitable for high-performance microprocessor systems.

Key Features

  • Memory Size: 2 Mbit (256K x 8)
  • Access Time: 150 ns
  • Single 5V Power Supply: The device operates on a single 5V power supply, simplifying the power design in the system.
  • Programming Voltage: 12.5V
  • Extended Temperature Range: The device functions reliably across a wide temperature range, making it suitable for industrial applications.
  • Package: The M27C2001-15F1 is available in a 32-pin DIP (Dual In-line Package), which is easy to handle and compatible with standard sockets.

Applications

The M27C2001-15F1 is designed for use in a variety of applications where a dependable and fast non-volatile memory is crucial. Typical applications include:

  • Microprocessor systems
  • Embedded systems
  • Storage of firmware or BIOS in computers and other electronic devices
  • Telecommunication systems
  • Industrial control systems
  • Automotive electronics

Programming and Erasure

The M27C2001-15F1 can be electrically erased and programmed by using the appropriate EPROM programmer. The erasure process is achieved by exposing the chip to ultraviolet light through the transparent window on top of the package. This feature allows for data to be updated as required, ensuring flexibility and a long product lifecycle.

Quality and Reliability

STMicroelectronics is known for its commitment to quality and reliability. The M27C2001-15F1 EPROM is manufactured with this in mind, ensuring that it meets the high standards expected by industry professionals for storage devices.
