Products specifications

Category Integrated Circuits (ICs) - Specialized ICs
Mfr STMicroelectronics
Package Tube
Product Status Obsolete
Programmable Not Verified
Type Programmable Peripherals IC
Applications 8-Bit MCU Peripherals
Mounting Type Surface Mount
Package / Case 52-LCC (J-Lead)
Supplier Device Package 52-PLCC (19.1x19.1)
Base Product Number PSD813F
Standard Package 25 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 657323-PSD813F2A-90J
Ultra Librarian 3D Model Ultra Librarian PSD813F2A-90J CAD Model

Description

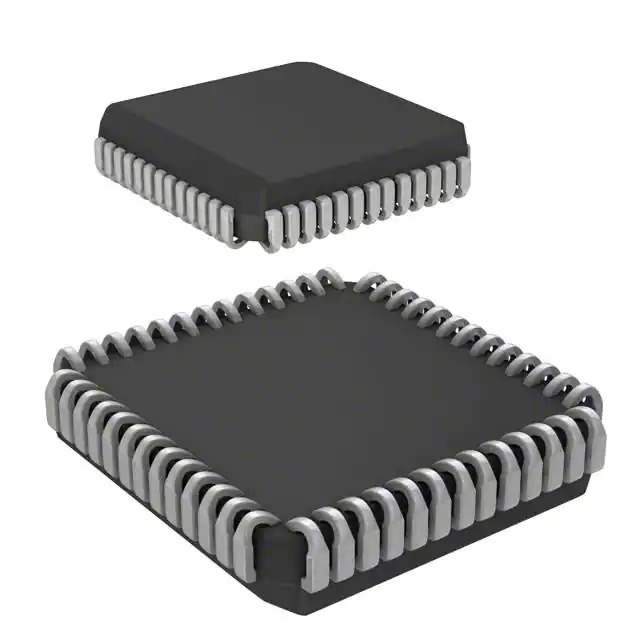

The PSD813F2A-90J is a sophisticated integrated circuit from STMicroelectronics, designed to cater to the needs of complex digital systems. This product falls under the category of Programmable System Devices (PSDs), which are tailored to provide flexible interfacing and memory solutions for microcontroller-based systems.

Key Features

  • Memory Capacity: The PSD813F2A-90J is equipped with ample memory, including flash memory for program storage, EEPROM for data storage that requires byte-level access, and additional SRAM.
  • High-Speed Operation: With an access time of 90 nanoseconds, this device can keep up with the demanding pace of high-speed microcontrollers, ensuring that data transfer does not become a bottleneck in system performance.
  • In-System Programmability: This device supports in-system programming (ISP) which allows for the programming and reprogramming of the memory without removing the chip from its application circuitry, providing ease of updates and product maintenance.
  • Flexible I/O: The PSD813F2A-90J offers a versatile set of I/O ports that can be configured to match specific system requirements, providing a customizable interface between the microcontroller and other peripherals.
  • Security Features: To ensure the protection of intellectual property and prevent unauthorized access, the device includes security features such as lock bits and protection mechanisms for the on-chip memory.

Applications

The PSD813F2A-90J is an ideal component for a wide range of applications that require robust memory interfacing capabilities. These include but are not limited to:

  • Embedded control systems
  • Automotive electronics
  • Industrial control units
  • Telecommunication infrastructure
  • Consumer electronics

Conclusion

With its combination of memory options, high-speed access, in-system programmability, and configurable I/O, the PSD813F2A-90J from STMicroelectronics is a highly versatile component that can be tailored to meet the specific needs of a broad range of electronic systems. Its advanced features and ease of use make it a valuable asset for any design engineer looking to optimize microcontroller-based applications.
