STMicroelectronics SCTH100N65G2-7AG Silicon Carbide Power MOSFET

The SCTH100N65G2-7AG from STMicroelectronics is a state-of-the-art silicon carbide (SiC) power MOSFET designed for high-efficiency power conversion applications. This device leverages the robustness and high thermal conductivity of silicon carbide, offering superior performance characteristics compared to traditional silicon-based MOSFETs.

With a drain-source voltage (Vds) of 650V and a continuous drain current (Id) of 100A at 25°C, the SCTH100N65G2-7AG is capable of handling high power densities. The device has a low on-resistance (Rds(on)) of 65mΩ, which significantly reduces conduction losses and improves overall system efficiency. This feature is particularly important for applications such as electric vehicle (EV) chargers, solar inverters, and uninterruptible power supplies (UPS) where efficiency is critical.

The SCTH100N65G2-7AG MOSFET also boasts fast switching capabilities, thanks to its low internal gate resistance (Rg) and reduced gate charge (Qg), which translates to reduced switching losses. This enhances performance in high-frequency power switching applications, enabling more compact and lighter solutions for power converters and inverters.

One of the key advantages of the SCTH100N65G2-7AG is its robustness against harsh environments. The device features a maximum junction temperature (Tj) of 175°C, allowing it to operate reliably in high-temperature conditions without performance degradation. Additionally, the SiC MOSFET is inherently resistant to thermal runaway, a common issue in silicon devices, providing an extra layer of safety and reliability for critical applications.

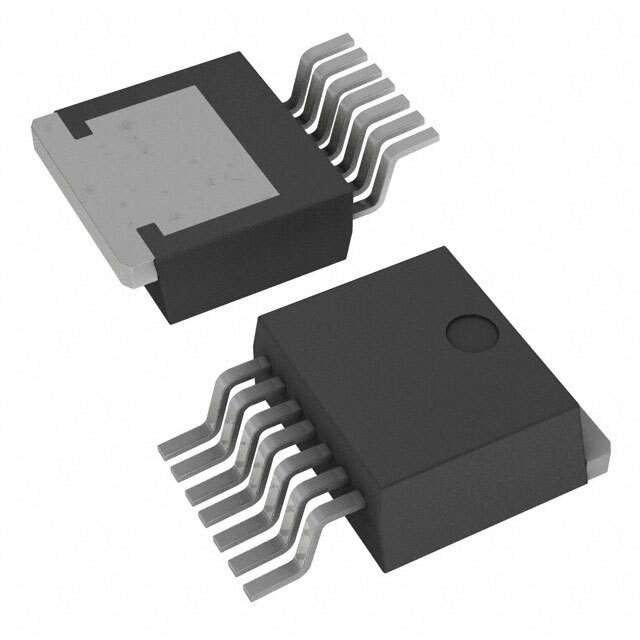

The package of the SCTH100N65G2-7AG is the H2PAK-7, which is designed for high power applications with excellent thermal performance. The package's design allows for easy integration into various circuit topologies, making it a versatile choice for designers.

In summary, the STMicroelectronics SCTH100N65G2-7AG is a powerful and reliable component that represents a significant advancement in power MOSFET technology, offering enhanced efficiency, faster switching, and exceptional thermal performance for a wide range of power conversion applications.
