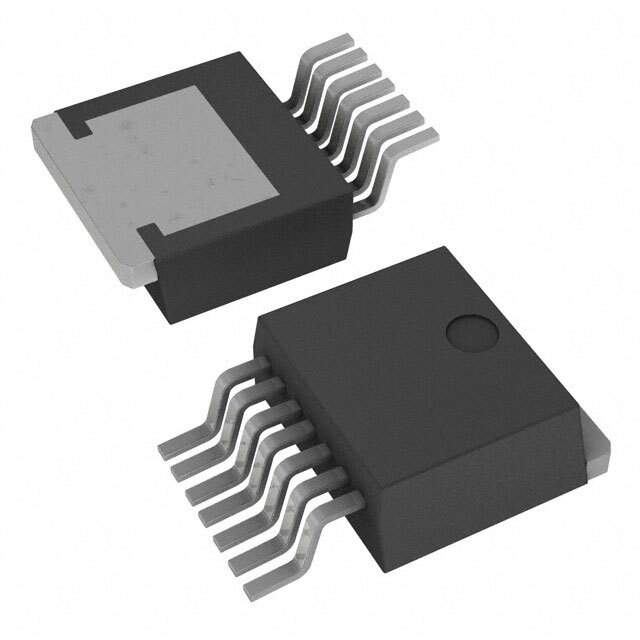

STMicroelectronics SCTH40N120G2V7AG Silicon Carbide Power MOSFET

The SCTH40N120G2V7AG is a state-of-the-art silicon carbide (SiC) power MOSFET presented by STMicroelectronics, a leader in semiconductor solutions. This high-performance power MOSFET is designed to cater to the demanding requirements of modern power electronics applications, offering improved efficiency, faster switching, and high-temperature operation.

Key Features

• High Voltage Rating: With a drain-source voltage (V<sub>DS) of 1200V, the SCTH40N120G2V7AG is capable of handling high voltage applications, making it suitable for electric vehicles, solar inverters, and industrial power supplies.
• Low On-Resistance: The device features a very low on-resistance (R<sub>DS(on)) of 40 mΩ, which minimizes conduction losses and improves overall efficiency.
• High-Temperature Operation: The SCTH40N120G2V7AG can operate at junction temperatures up to 175°C, ensuring reliability and performance even under extreme conditions.
• Fast Switching Speed: Thanks to the inherent characteristics of SiC, this MOSFET offers fast switching speeds, which reduces switching losses and enables higher frequency operation.
• Robust Body Diode: The device includes an integrated body diode with low reverse recovery charge (Q<sub>rr), which is essential for hard-switching applications.

Applications

The SCTH40N120G2V7AG is ideal for a wide range of applications, including:

• Electric vehicle (EV) powertrains and charging stations
• Photovoltaic (PV) inverters and energy storage systems
• Uninterruptible power supplies (UPS)
• High-performance power converters and inverters
• Switched-mode power supplies (SMPS)

Advantages

Utilizing the SCTH40N120G2V7AG provides several advantages to system designers:

• Enhanced efficiency due to low switching and conduction losses
• Reduced system size and weight because of higher frequency operation and smaller passive components
• Increased system robustness and reliability with high-temperature capability
• Improved thermal management owing to better thermal characteristics of SiC

With its combination of high performance, efficiency, and reliability, the SCTH40N120G2V7AG from STMicroelectronics represents a significant advancement in power MOSFET technology, providing designers with a superior solution for their high-voltage power conversion challenges.
