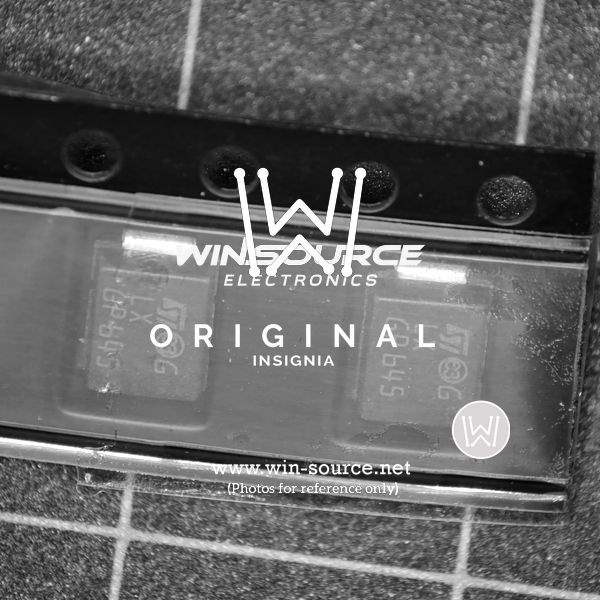

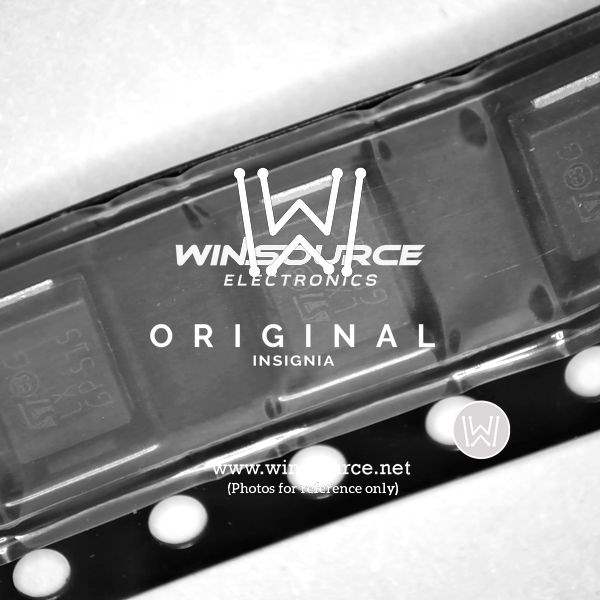

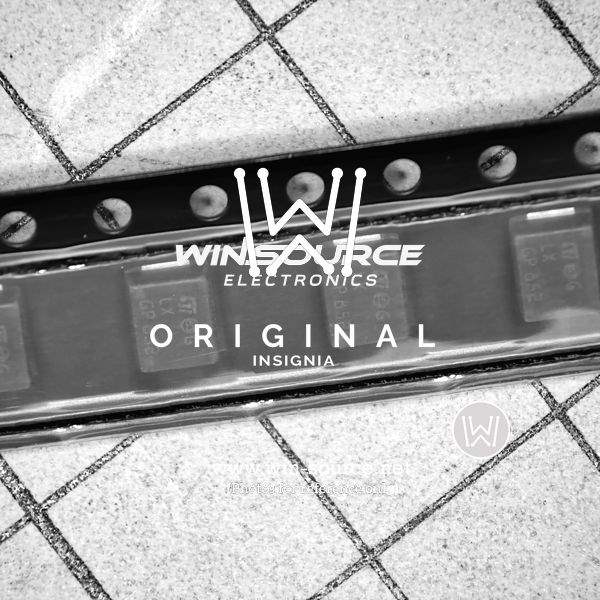

The SM6T15CA is a robust transient voltage suppression (TVS) diode, part of the Transil series from STMicroelectronics. This component is designed to protect sensitive electronics against voltage transients induced by system inductive load switching and lightning disturbances. The bidirectional TVS diode is ideal for applications requiring a high surge capability to absorb transient overvoltages, ensuring the protection of voltage-sensitive devices.

Key Features

• Stand-off Voltage: The SM6T15CA has a stand-off voltage of 15V, making it suitable for a range of applications where this voltage level is a common operating parameter.
• Peak Pulse Power: It can handle a peak pulse power of 600W (10/1000µs surge), providing a high level of protection against power surges.
• Package: Encased in a DO-214AA package, also known as SMB, it offers a compact footprint for PCB layout flexibility while ensuring robust handling and mechanical strength.
• Temperature Range: The operating junction temperature range spans from -40°C to +150°C, allowing the diode to function reliably under extreme conditions.
• Compliance: This device meets the IEC 61000-4-2 and IEC 61000-4-5 standards, ensuring compatibility with electrostatic discharge (ESD) and surge protection requirements.

Applications

The SM6T15CA is versatile and can be used in a wide array of applications, including:

• Power supply protection
• Industrial systems
• Telecommunication devices
• Consumer electronics
• Computer peripherals

With its ability to rapidly clamp transient overvoltages to a safe level before they can damage sensitive circuit components, the SM6T15CA is an essential component for designers looking to enhance the durability and reliability of their electronic systems.
