The ST1S14PHR is a highly efficient, monolithic synchronous step-down switching regulator designed by STMicroelectronics, a leader in semiconductor solutions. This compact and versatile power management integrated circuit (IC) is well-suited for a wide range of applications, particularly where space and power efficiency are critical.

Key Features

• Wide Input Voltage Range: The ST1S14PHR operates with an input voltage from 2.5V to 18V, making it flexible for use in various systems powered by batteries or regulated power supplies.
• Adjustable Output Voltage: Users can set the output voltage from 0.8V to VIN, ensuring compatibility with modern microcontrollers and digital ICs requiring lower voltages.
• High Efficiency: With a synchronous rectification topology, the device achieves high efficiency, which is critical for extending battery life in portable applications.
• Low Dropout Operation: The regulator's low dropout feature allows it to continue regulating the output voltage even when the input-to-output differential is very small.
• Protection Features: The device includes thermal shutdown, current limiting, and short-circuit protection, enhancing system reliability and safety.

Applications

The ST1S14PHR is ideal for a variety of applications, including:

• Portable and battery-powered devices
• Microprocessor and DSP supply
• Consumer electronics
• Networking and telecom equipment

Additional Information

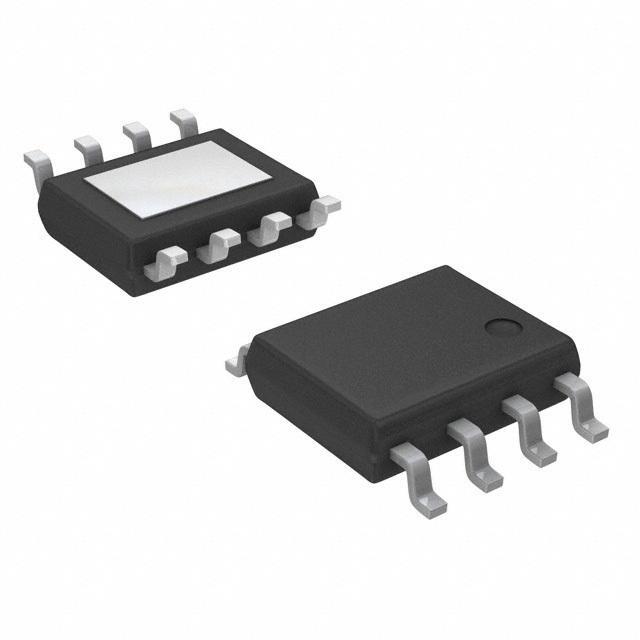

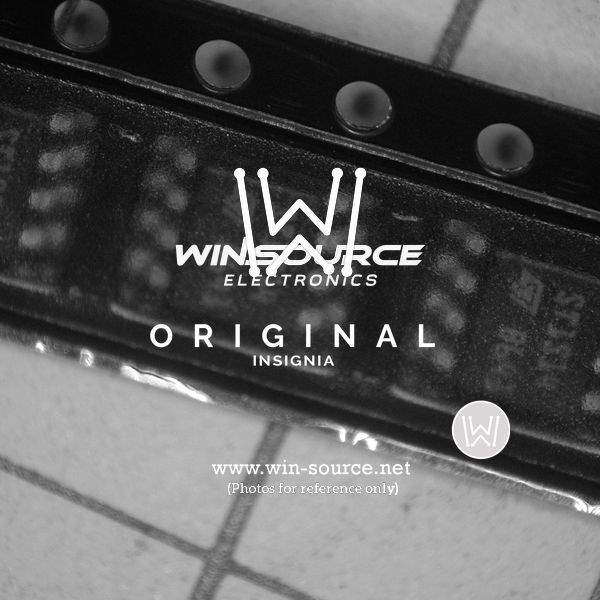

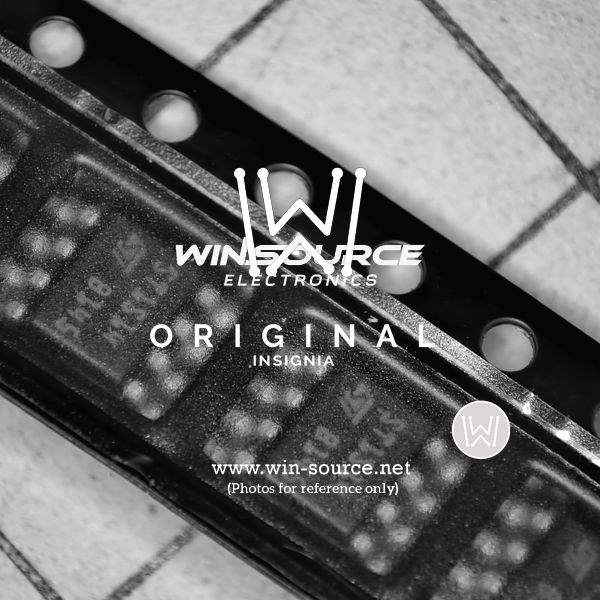

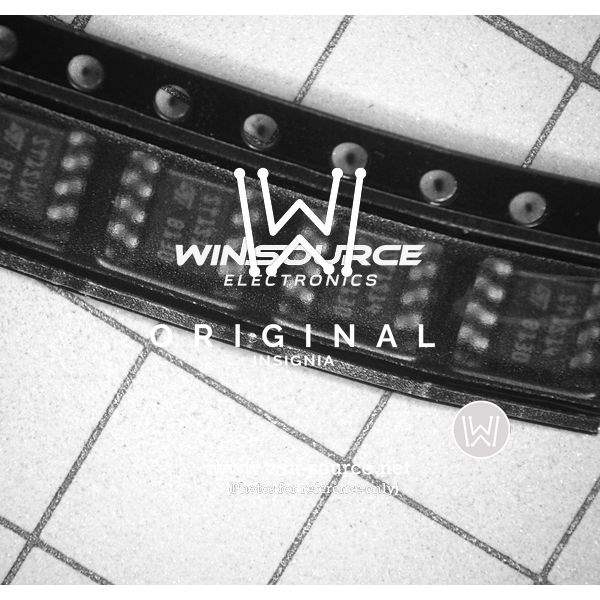

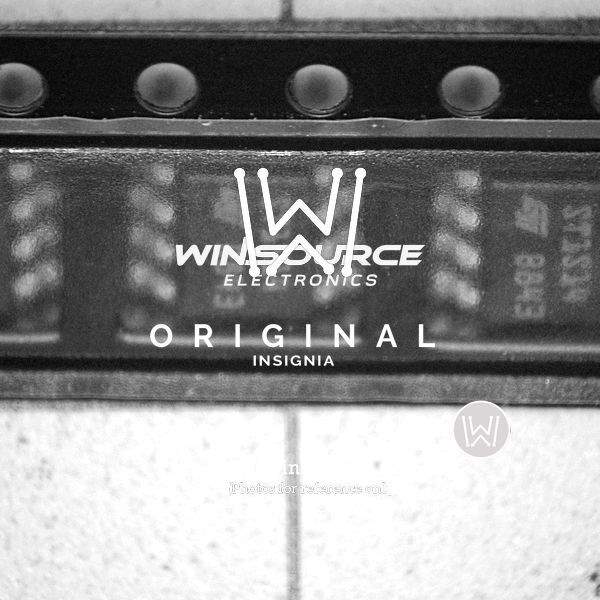

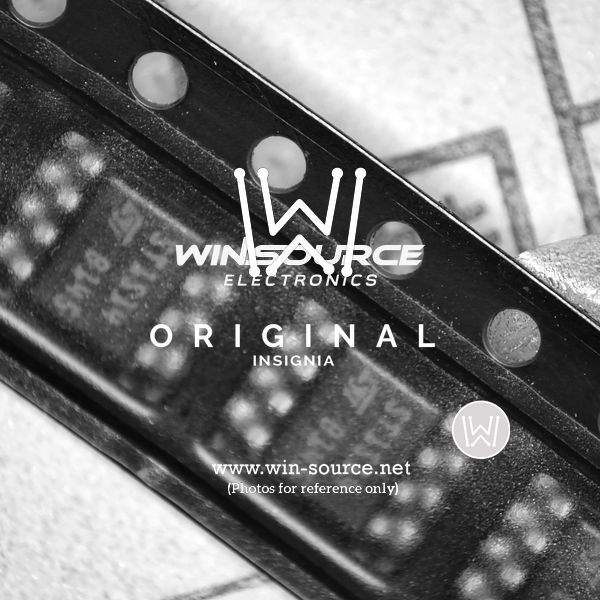

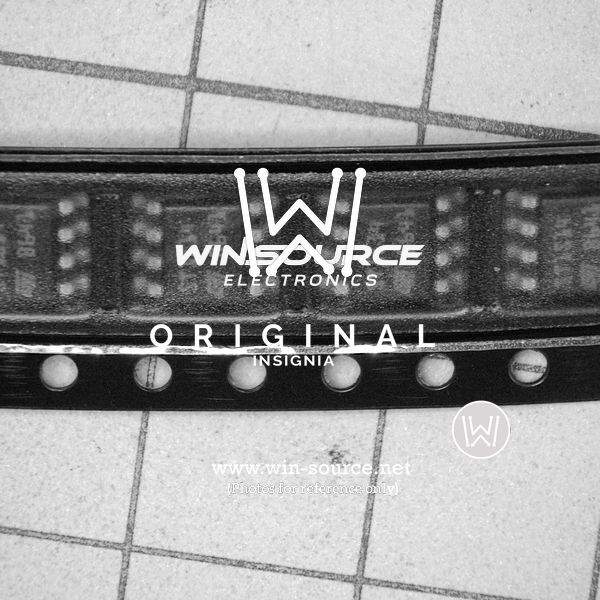

The ST1S14PHR is available in an 8-pin SO-8 package, providing a compact solution that is easy to integrate into space-constrained designs. Its switching frequency is adjustable up to 1.5MHz, allowing the use of small surface-mount inductors and capacitors, which reduces the overall solution size and cost. Moreover, the device supports a maximum output current of up to 3A, delivering sufficient power for a wide range of applications.

With its combination of features, the ST1S14PHR is an excellent choice for designers looking to optimize their power management solutions in terms of efficiency, size, and cost.
