STB45NF06T4 - N-Channel 60V - 0.014 ohm - 45A - D2PAK STripFET™ II Power MOSFET

The STB45NF06T4 is a high-performance N-Channel Power MOSFET from STMicroelectronics, designed to deliver efficiency and power density in a wide range of applications. This device is part of the STripFET™ II series, which is renowned for its low on-resistance and low gate charge, making it an excellent choice for high-efficiency power management tasks.

Key Features

• Exceptional Voltage Capability: With a drain-source voltage (V<sub>DS) of 60V, the STB45NF06T4 is suitable for handling high-voltage applications with ease, ensuring robust performance under various operating conditions.
• Low On-Resistance: The device boasts an ultra-low on-resistance (R<sub>DS(on)) of just 0.014 ohms. This feature significantly reduces conduction losses, enhancing overall system efficiency.
• High Current Rating: With a continuous drain current (I<sub>D) of 45A, this MOSFET can manage high current loads, making it ideal for power-intensive applications.
• Improved Switching Performance: The low gate charge (Q<sub>g) allows for faster switching speeds, which is crucial for high-frequency power conversion systems.

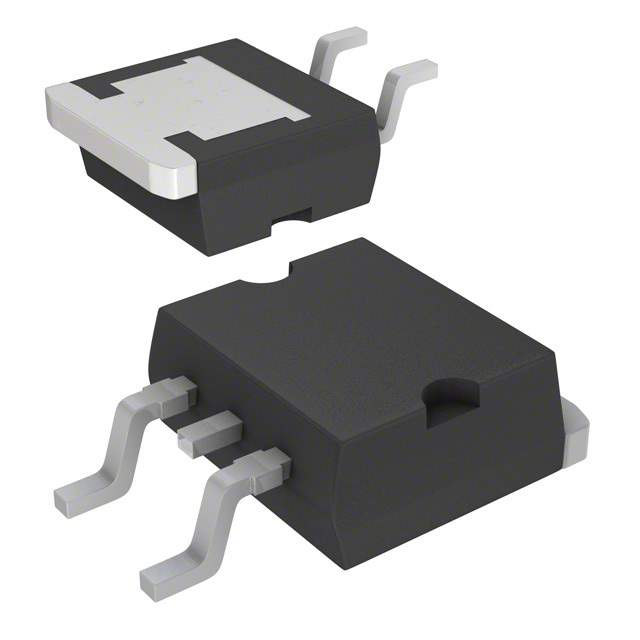

• Advanced Packaging: Encased in a D2PAK package, the STB45NF06T4 offers a compact footprint along with excellent thermal performance, ensuring reliability even in space-constrained designs.

Applications

The STB45NF06T4 is versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Control Circuits
• Automotive Applications
• Power Management Solutions

STMicroelectronics' commitment to innovation is evident in the STB45NF06T4's design, which integrates state-of-the-art technology to meet the stringent requirements of modern electronic systems. Whether it's for industrial, automotive, or consumer applications, this MOSFET is engineered to provide reliable and efficient power control. By choosing the STB45NF06T4, designers will benefit from a combination of performance, efficiency, and reliability in their power management designs.
