STD30NF06LT4G - N-Channel 60V 30A Power MOSFET by STMicroelectronics

The STD30NF06LT4G is a high-performance N-Channel Power MOSFET designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This MOSFET is part of STMicroelectronics' STripFET™ II series, which is renowned for providing excellent on-state resistance (R<sub>DS(on)) and superior switching performance. The device is tailored for a wide range of applications, including high-efficiency power management tasks, motor control, power supplies, and automotive systems.

With a drain-source voltage (V<sub>DSS) of 60V and a continuous drain current (I<sub>D) of 30A, the STD30NF06LT4G is capable of handling significant power levels. The low threshold voltage ensures that the MOSFET can be driven at lower gate voltages, making it suitable for low-voltage applications and compatible with logic-level gate drive circuits.

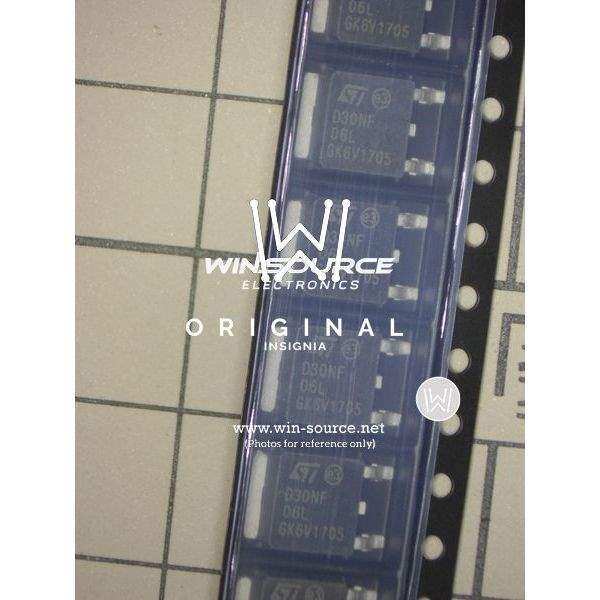

The STD30NF06LT4G features an advanced package design, utilizing the DPAK (TO-252) surface-mount package. This compact package is designed to offer excellent thermal performance and is well-suited for space-constrained applications. The device is also RoHS compliant, ensuring that it meets current environmental standards by avoiding the use of hazardous substances in its construction.

Key Features:

• 60V drain-source voltage (V<sub>DSS)
• 30A continuous drain current (I<sub>D)
• Low on-state resistance (R<sub>DS(on))
• Fast switching speed
• Low gate charge (Q<sub>g)
• High avalanche ruggedness
• 100% avalanche tested
• Logic-level gate drive capability
• DPAK (TO-252) package for better thermal performance
• RoHS compliant

The STD30NF06LT4G is not only robust but also energy-efficient, making it an ideal choice for power conversion applications where efficiency is paramount. Its fast switching capabilities contribute to reduced switching losses, further enhancing the energy efficiency of the systems in which it is used.

Whether you're designing power supplies, DC-DC converters, or motor drives, the STD30NF06LT4G from STMicroelectronics offers a reliable and efficient solution for your power MOSFET needs.
