Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Type Power Management
Function High Side Driver (Internal FET)
Utilized IC / Part VNI8200XP
Primary Attributes 8 Channel Internal Switch
Supplied Contents Board(s)
Secondary Attributes On-Board LEDs
Base Product Number STEVAL
Other Names 497-14137,-1138-STEVAL-IFP022V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284576-STEVAL-IFP022V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-IFP022V1 CAD Model

Description

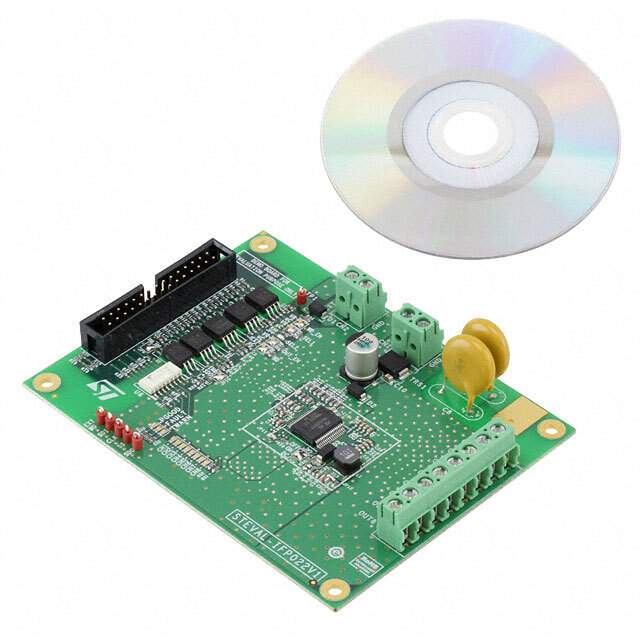

STEVAL-IFP022V1 - ISO8200AQ Galvanic Isolated 8-channel High-Side Smart Power Solid State Relay

The STEVAL-IFP022V1 from STMicroelectronics is a state-of-the-art evaluation board featuring the ISO8200AQ, an 8-channel high-side smart power solid-state relay. This board is designed for industrial automation and control systems that require reliable and robust galvanic isolation between the logic controls and the load.

Key Features:

  • Integrated Galvanic Isolation: The ISO8200AQ provides galvanic isolation between the input and output with a capability of up to 1000 Vrms, ensuring safety and preventing ground loop issues.
  • High-Side Smart Power Switch: Each channel on the device can control a wide range of loads with a 50 V maximum operating voltage and a 700 mA continuous current rating per channel.
  • Diagnostic Functions: The evaluation board includes diagnostic features such as feedback on the status of each channel, overload and overtemperature detection, which enhances system reliability and simplifies troubleshooting.
  • Flexible Input Interface: The ISO8200AQ is compatible with 3.3V to 5V logic levels, allowing easy interfacing with a variety of microcontrollers and logic circuits.
  • Compact and Robust Design: The STEVAL-IFP022V1 is designed to withstand harsh industrial environments, providing a compact and reliable solution for driving resistive, capacitive, and inductive loads.

Applications:

The STEVAL-IFP022V1 is ideal for a wide range of industrial applications, including:

  • Programmable Logic Controllers (PLCs)
  • Industrial PC peripheral driving
  • Factory automation and process control
  • Robotics
  • Motor control systems

Why Choose the STEVAL-IFP022V1?

With its robust design, comprehensive diagnostic features, and ability to handle significant power levels, the STEVAL-IFP022V1 is an excellent choice for developers and engineers looking to evaluate the ISO8200AQ smart power switch in real-world conditions. It simplifies the design process and accelerates the development of industrial automation systems, while ensuring safety and reliability.
