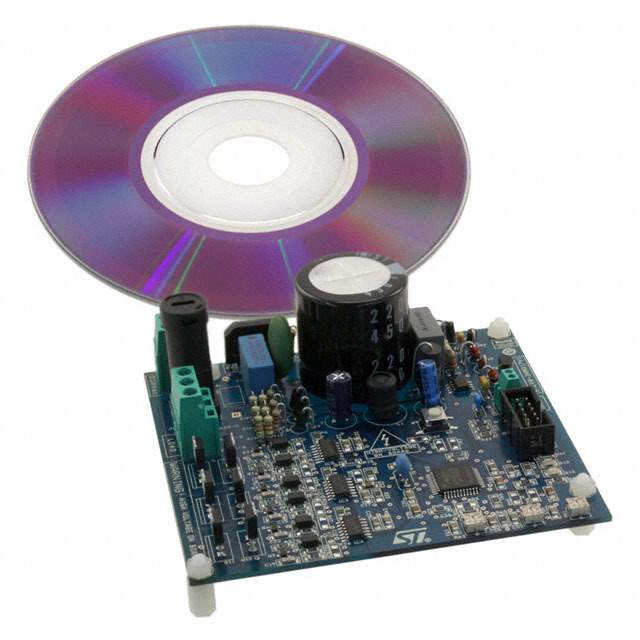

STEVAL-IHM017V1 - STMicroelectronics Low Voltage Three-Phase Inverter Power Board

The STEVAL-IHM017V1, designed and manufactured by STMicroelectronics, is a low voltage three-phase inverter power board that is specifically engineered to drive motors in a wide array of applications such as home appliances, air conditioners, fans, and pump systems. This versatile power board is an integral part of ST's motor control ecosystem, providing a comprehensive solution for engineers and designers looking for a high-performance, compact, and reliable motor driver.

At the heart of the STEVAL-IHM017V1 lies an advanced STGIPN3H60 – a smart power module that integrates IGBTs, freewheeling diodes, and an operational amplifier for current sensing, making it a highly integrated and efficient solution. This power board is capable of operating at a voltage range from 125 V to 400 V, which allows for flexibility in various low voltage applications.

The board is equipped with numerous features that make it a top-choice for motor control applications. It includes undervoltage lockout protection, overcurrent and short-circuit protection, thermal shutdown, and interlocking functions. These safety features ensure the longevity and reliability of both the power board and the motor it controls.

Furthermore, the STEVAL-IHM017V1 is compatible with a variety of ST's microcontroller-based development boards, simplifying the process of creating a complete motor control system. This compatibility allows for easy integration with ST's extensive software libraries, which provide algorithms for sensorless field-oriented control (FOC), six-step commutation, and other advanced motor control techniques.

The compact design of the STEVAL-IHM017V1, along with its screw terminal connectors, make it easy to set up and connect to a motor and control circuitry. Its robust design and comprehensive feature set make the STEVAL-IHM017V1 an excellent choice for developers looking to create efficient, high-performance motor control systems with minimal hassle.
