Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 350mA
Outputs and Type 4, Isolated
Features Individual RGGB Brightness Regulation
Voltage - Input 88 ~ 265 VAC
Supplied Contents Board(s)
Utilized IC / Part L6562A
Other Names STEVALILL019V1,497-10602,-497-10602
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283870-STEVAL-ILL019V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL019V1 CAD Model

Description

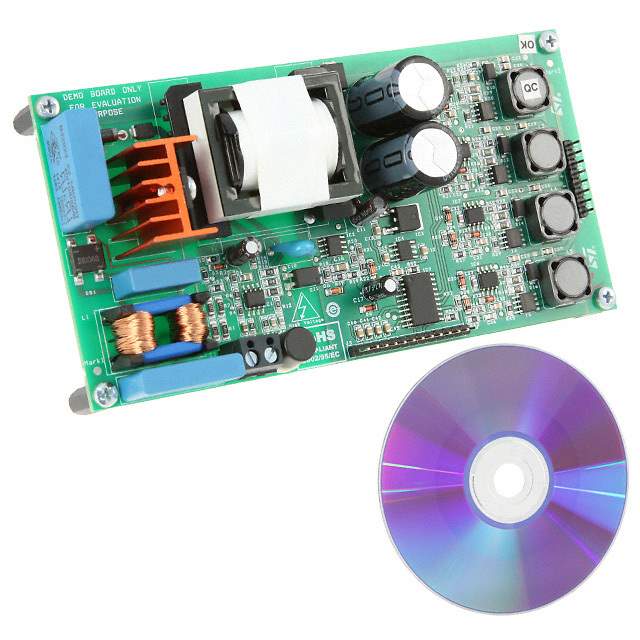

STEVAL-ILL019V1 - LED Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL019V1 is an advanced evaluation board designed by STMicroelectronics, tailored for the testing and prototyping of LED lighting solutions. This versatile evaluation platform is specifically engineered to demonstrate the capabilities of ST's LED driver ICs, providing an efficient and flexible means to assess the performance of LED drivers in various lighting applications.

The board comes equipped with the innovative L6562A, a transition-mode Power Factor Corrector (PFC) controller that is central to the evaluation board's function. This controller is well-suited for LED drivers that require high power factor and low THD, making the STEVAL-ILL019V1 an excellent choice for high-performance lighting systems.

In addition to the PFC controller, the evaluation board features the L6385E high-voltage gate driver, which ensures robust and efficient driving of external MOSFETs. This combination of components allows the STEVAL-ILL019V1 to deliver optimized performance, suitable for a range of LED lighting applications, from residential and commercial lighting to industrial illumination.

The STEVAL-ILL019V1 is designed for ease of use, with a user-friendly interface and clear markings that make it simple to connect and test various LED configurations. Its compact size and comprehensive feature set make it an ideal tool for engineers and designers looking to explore the capabilities of STMicroelectronics' LED driver solutions.

Key features of the STEVAL-ILL019V1 include:

  • Transition-mode PFC controller (L6562A) for high power factor and low THD.
  • High-voltage gate driver (L6385E) for efficient MOSFET driving.
  • Compatibility with a wide range of LED types and configurations.
  • Easy-to-use interface for quick setup and testing.
  • Compact design suitable for benchtop experimentation and prototyping.

Overall, the STEVAL-ILL019V1 provides a comprehensive platform for the development and evaluation of sophisticated LED lighting systems, showcasing the quality and innovation that STMicroelectronics brings to the field of solid-state lighting technology.
