Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Bulk
Current - Output / Channel 85mA
Outputs and Type 16, Non-Isolated
Features Dimmable, USB Interface
Voltage - Input 10V ~ 28V
Supplied Contents Board(s)
Utilized IC / Part LED7708
Base Product Number STEVAL
Other Names 497-13152,-1138-STEVAL-ILL035V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8473.30.1180
Win Source Part Number 1283851-STEVAL-ILL035V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL035V1 CAD Model

Description

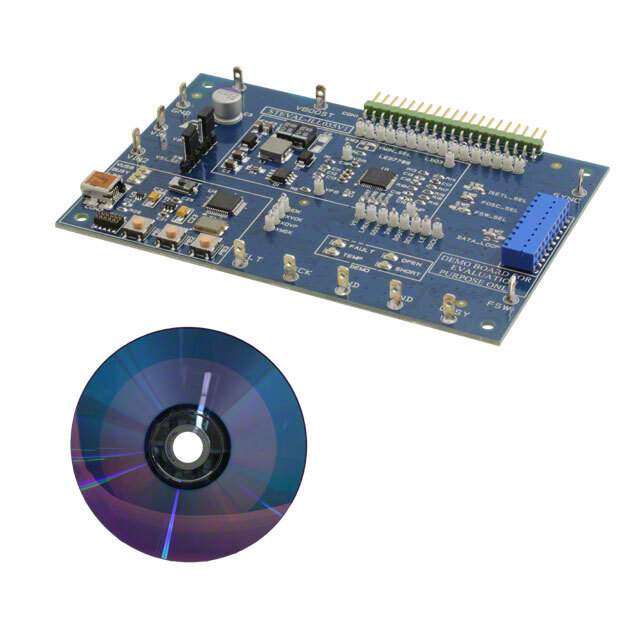

The STEVAL-ILL035V1 from STMicroelectronics is a sophisticated LED driver evaluation board designed for those looking to explore and prototype advanced lighting solutions. This evaluation board is specifically tailored for driving LEDs with high efficiency and precision, making it an ideal platform for developing applications such as architectural lighting, signal lighting, and general-purpose LED illumination.

At the heart of the STEVAL-ILL035V1 is the cutting-edge LED6001 chip, a monolithic, step-down, current-mode PWM dimmable LED driver. This integrated circuit is capable of delivering up to 3 A of current to the LED load while ensuring excellent efficiency and thermal performance. The device supports a wide input voltage range, from 4.5 V to 38 V, allowing for a variety of power supplies to be used.

The evaluation board comes equipped with several key features that enhance its versatility and user-friendliness:

  • Adjustable Output Current: Users can set the LED current to their desired level to match the requirements of their specific application.
  • Dimming Control: The board supports both analog and PWM dimming, offering designers the flexibility to create dynamic lighting effects and power-saving modes.
  • Overcurrent Protection: Ensuring the longevity of the board and connected LEDs, the LED6001 includes overcurrent protection.
  • Thermal Protection: The built-in thermal shutdown function protects the board from overheating, thus ensuring safe operation under various conditions.

For developers, the STEVAL-ILL035V1 is more than just a piece of hardware; it is a comprehensive development solution that comes with detailed documentation, including schematics, bill of materials, and PCB layout to facilitate rapid prototyping and learning. Additionally, STMicroelectronics provides software resources and technical support to help streamline the design process.

Whether you are an engineer looking to create a new LED-based product, a hobbyist experimenting with lighting projects, or an educator in the field of electronics, the STEVAL-ILL035V1 offers a robust and flexible platform to bring your ideas to light.
